Snap action with constant contact pressure up to switching point

Metal enclosure
Wide range of alternative actuators
Good resistance to oil and petroleum spirit
30 mm x 63,5 mm x 30 mm
Actuator heads can be repositioned by 4 x 90°
Mounting details to EN 50047
1 Cable entry M 20 x 1.5
Lever angle adjustable in 10° steps

SKU

4030661354491
Manufacturer code

101193015
CAD, traceparts, product ID

33-31052019-062948
Current, Thermal test current

10 A
Current, Utilisation category AC-15

4 A
Current, Utilisation category DC-13

1 A

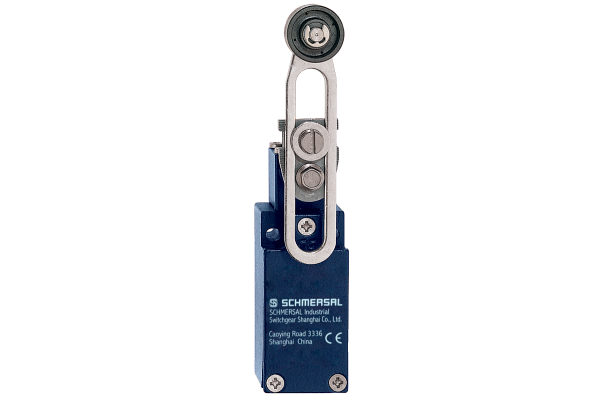

Actuating element

Roller lever
Type of Execution, Housing construction form

Norm construction design
Type of Execution, IP Protection class, General

IP67
Type of Execution, Mechanical life, minimum,

20000000 Operations
Switching principle

Snap action
Diameter, Wire cross-section, AWG

13 AWG
Diameter, Cable cross-section of the cable glands, maximum

12 mm
Diameter, Cable cross-section of the cable glands, minimum

7 mm
Height, Sensor

160.5 mm
Length, Sensor

49 mm
Width, Sensor

30 mm
Electrical data, Cable section, maximum

2.5 mm²
Electrical data, Cable section, minimum

0.75 mm²
Electrical data, Max. fuse rating

6 A gG D-fuse
Electrical data, Utilisation category

DC-13
AC-15
Explosion protection, Manufacturer's declaration

ATEX Zone 2 and 22
Explosion protection parameters, category

3D
3G
Explosion protection parameters, designation

D II 3D Ex tc IIIC T90°C Dc X
D II 3G Ex nC IIC T5 Gc X
Explosion protection, regulations

EN IEC 60079-0
EN 60079-31
EN IEC 60079-15
Explosion protection parameters, zones

22
2
Material, contacts, electrical

Silver
Housing material

Metal, zinc die-cast
Material, enclosure coating

painted
Movement, actuating speed, maximum

1 m/s
Movement, actuating speed, minimum

240 mm/min
Standard, standards

EN IEC 60947-5-1
BG-GS-ET-15
Note, Electrical Data, Cable section

All indications including the conductor ferrules.
Number, Auxiliary contacts

1
Number, Safety contacts

1
PIM maintenance status

Discharge "Online catalog"
PNV, standard, certificates

INMETRO
Type of switch function

NO contact, NC contact
Type of electric connection

Screw terminals M20 x 1.5
Safety parameters, Mission time

20 Year(s)
Safety parameter

EN ISO 13849-1
SAP, basic quantity unit

Piece
SAP, EAN (European Article Number)

4030661354491
SAP, product group

Initial
SAP, gross weight

496.000 g
SAP, net weight

496.000 g
Included in delivery, number and type, general

Ex-certified screwed cable gland
Temperature, Ambient temperature[generated product variant]

-20 ... +60 °C
Temperature, ambient temperature, maximum

60 °C
Temperature, ambient temperature, minimum

-20 °C
Time, Bounce duration, maximum

3 ms
Time, Switching frequency

5000 /h
Voltage, Rated impulse withstand voltage

6 kV
Voltage, rated insulation voltage

500 V
Voltage, Utilisation category AC-15

230 VAC
Voltage, Utilisation category DC-13

24 VDC
Web Type

Product range
Selection (Yes/No), Safety functions

Yes
Note, Motion, Actuating Speed

Actuating speed with actuating angle 30° to switch axis
Material, lever

Metal film
Material, Castor

Plastic
Time, Switchover time, maximum

5.5 ms
Tightening torque, actuating torque, minimum

0.15 Nm
Tightening torque, Positive break torque

0.185 Nm

This product is unavailable

This product is currently unavaliable, this could be due to a limited stock shortage, or because of discontinuation or replacement. For more information please contact us at b2b@tipteh.si.
Manufacturer Schmersal
