IMX12-DI03-1S-1NAM1R-0/24VDC

Isolating switching amplifier, 1-channel, Operating voltage 10…30 VDC, Relay output (changeover), NAMUR Repeater, Output mode adjustable (NO/NC mode), Input circuits monitored for wire-break and short-circuit, Complete galvanic isolation, Input reverse-polarity protected, Removable screw terminals, ATEX, IECEx, NEPSI, cUL, cFM, INMETRO, Kosha, TIIS, Use in Zone 2, SIL 2

SKU

4047101310344
Manufacturer code

7580000
Rated supply voltage at DC

10 - 30 V
Number of inputs, according to NAMUR

1
Switching voltage

250 V
Switching current

2 A
Switching frequency

10 Hz
SIL according to IEC 61508

2

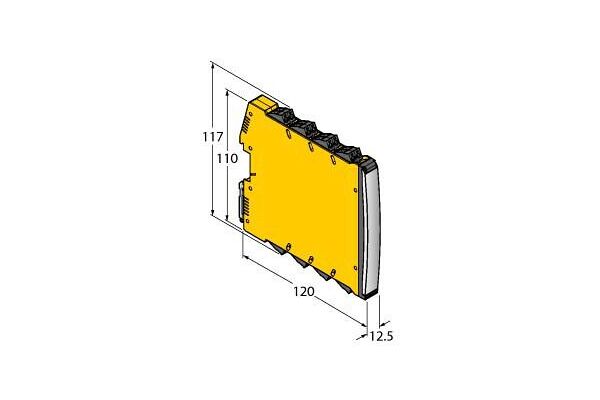

Width

12.5 mm
Height

117 mm
Type of electric connection

Screw connection
Mounting method

Snap mounting support rail
Depth

120 mm
Degree of protection (IP)

IP20
Power consumption

1.2 W
Operating temperature

-25 - 70 °C
Approvals / Compliance

SIL 2
Type of switch function

NO/NC contacts

Manufacturer Turck

Product attachments

file-44609-d13b823d99b684e9904a9c2320ed81d9.pdf (PDF, 243.3 kB)
