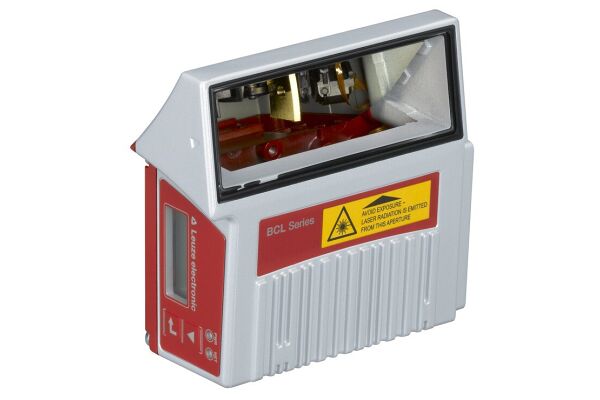

BCL 301i SF 100 D H Stationary bar code reader

This stationary bar code reader features a heating special version and includes functions like AutoConfig, Alignment mode, AutoControl, AutoReflAct, Code fragment technology, LED indicator, and reference code comparison. It offers a typical scanning rate of 1,000 scans per second and a reading distance of 70 to 445 mm. The reader uses a line scanner with a lateral deflecting mirror and operates at a supply voltage of 18 to 30 V DC. It has a plug connector for connection and supports interfaces such as MultiNet Plus, RS 485, and USB 2.0. The device is equipped with a monochromatic graphic LED display.
