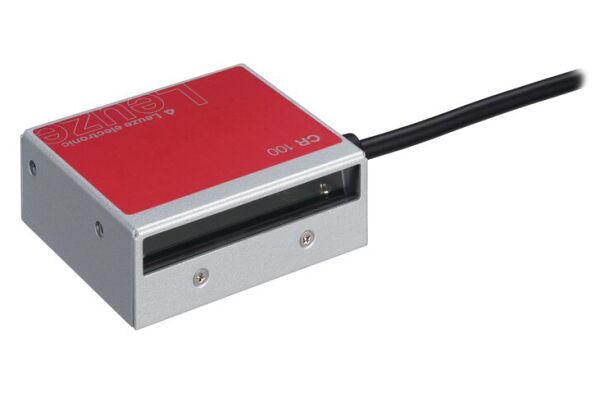

CR100M2/R2 Stationary bar code reader

CR100M2/R2
Compact stationary barcode reader with selectable output format and multiple functionalities, including alignment mode and LED indicator.
  • SKU
    2110-50127450
  • Manufacturer code
    50127450
  • Type of electric connection
    Cable
  • Operation agent-safety class
    Safety class 3
  • Width sensor
    55 mm
  • Height of sensor
    20 mm
  • Length of sensor
    47 mm
  • With configurable message output
    true
  • Ambient temperature
    0 - 45 °C
  • Rated control supply voltage DC
    4.9 - 5.4 V
  • Voltage type
    DC
    DC
    DC
    DC
  • With monitoring function downstream switching devices
    false
  • With alert field output
    false
  • With restart blockage
    false
  • Suitable for safety functions
    false
  • Number of semiconductor outputs with signalling function
    1
  • Switching output
    NPN
  • Supplyoltage (V)
    4.9 ... 5.4
  • Ambient temperature
    0 ... 45
  • Type of interface
    RS 232
  • Reading method
    Line scanner
  • Light beam exit
    Front
  • Display
    LED
  • Most suitable applications
    Barcode scanning
  • Manufacturer Leuze

Product attachments

DS_CR100M2-R2_eng_50127450 (LINK)
