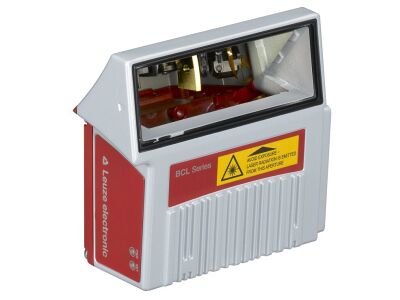

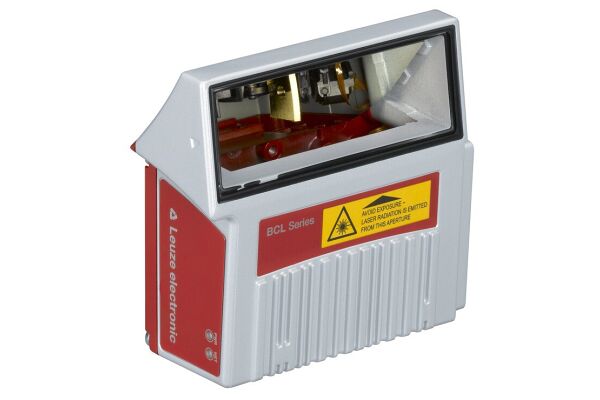

This stationary barcode reader features advanced functions like AutoConfig, Alignment mode, and Code fragment technology. It operates at a scanning rate of 1,000 scans per second and includes a raster scanner with a deflecting mirror for lateral light beam exit.

SKU

2110-50141855
Manufacturer code

50141855
Type of electric connection

Plug-in connection
Operation agent-safety class

Safety class 3
Width sensor

103 mm
Height of sensor

44 mm
Length of sensor

96 mm
With configurable message output

true
Laser protection class

Class 1
Ambient temperature

0 - 40 °C
Rated control supply voltage DC

18 - 30 V
Voltage type

DC
DC
DC
DC
With monitoring function downstream switching devices

false
With alert field output

false
Wavelength of the sensor

655 nm
With restart blockage

false
Suitable for safety functions

false
Supplyoltage (V)

18 ... 30
Ambient temperature

0 ... 40
Type of interface

EtherCAT
USB 2.0
Reading method

Raster scanner with deflecting mirror
Light beam exit

Lateral with deflecting mirror
Display

LED
Most suitable applications

Industrial automation Inventory management Manufacturing processes
