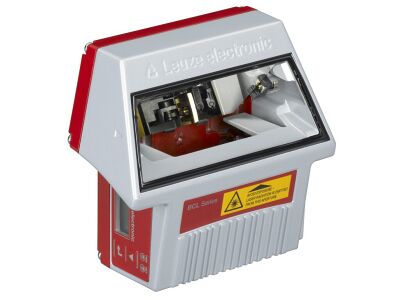

BCL 92 SM 302 Stationary bar code reader

BCL 92 SM 302
A stationary bar code reader with multiple features including gate control, alignment mode, and selectable output formats. It supports a scanning rate of 600 scans per second and operates within a reading distance of 40 to 275 mm.
  • SKU
    2110-50143262
  • Manufacturer code
    50143262
  • Type of electric connection
    Cable with connector
  • Operation agent-safety class
    Safety class 3
  • Width sensor
    62 mm
  • Height of sensor
    23.8 mm
  • Length of sensor
    56.9 mm
  • With configurable message output
    true
  • Laser protection class
    Class 1
  • Ambient temperature
    5 - 40 °C
  • Rated control supply voltage DC
    10 - 30 V
  • Voltage type
    DC
    DC
    DC
    DC
  • With monitoring function downstream switching devices
    false
  • With alert field output
    false
  • Wavelength of the sensor
    655 nm
  • With restart blockage
    false
  • Suitable for safety functions
    false
  • Number of semiconductor outputs with signalling function
    2
  • Switching output
    NPN
  • Supplyoltage (V)
    10 ... 30
  • Ambient temperature
    5 ... 40
  • Type of interface
    RS 232
  • Reading method
    Line scanner
  • Light beam exit
    Front
  • Display
    LED
  • Most suitable applications
    Reading gate control
  • Manufacturer Leuze

Product attachments

DS_BCL-92-SM-302_eng_50143262 (LINK)
