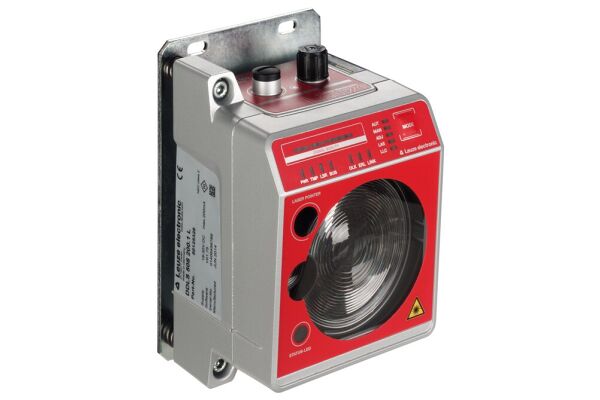

DDLS 508 120.4 Optical data transmission

DDLS 508 120.4
This optical data transmission device is pre-mounted on a mounting plate and operates parallel light axes without being affected by reflective surfaces. It features reliable transmission and supports a working range of 100 to 120,000 mm.
  • SKU
    2110-50132916
  • Manufacturer code
    50132916
  • Ethernet
    true
  • Bus type
    Other
  • Flush-mounted installation
    false
  • Suitable for wall mounting
    true
  • Suitable for DIN rail (top hat rail) mounting
    false
  • Socket outlet adapter
    false
  • Height
    156 mm
  • Width
    100 mm
  • Depth
    99.5 mm
  • Most suitable applications
    Environments where reflective surfaces are present Long-distance data transmission
  • Special version
    Operation of parallel light axes
    Not influenced by reflective surfaces
  • Supply voltage
    18 ... 30
  • Voltage type
    DC
  • Ambient temperature
    -5 ... 50
  • Interface
    EtherNet TCP/IP
    PROFINET
  • Working range (mm)
    100 ... 120000
  • Pre-mounted
    Mounting plate
  • Manufacturer Leuze

Product attachments

DS_DDLS-508-120-4_eng_50132916 (LINK)
