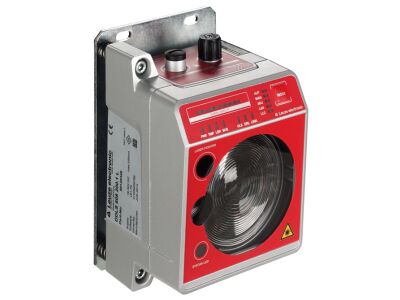

DDLS 508 40.4 H Optical data transmission

DDLS 508 40.4 H
An optical data transmission system, pre-mounted on a mounting plate, designed to operate without being influenced by reflective surfaces or heating, and capable of handling parallel light axes. It supports a working range from 100 to 40,000 mm.
  • SKU
    2110-50132920
  • Manufacturer code
    50132920
  • Ethernet
    true
  • Bus type
    Other
  • Flush-mounted installation
    false
  • Suitable for wall mounting
    true
  • Suitable for DIN rail (top hat rail) mounting
    false
  • Socket outlet adapter
    false
  • Height
    156 mm
  • Width
    100 mm
  • Depth
    99.5 mm
  • Most suitable applications
    Environments with reflective surfaces Heating zones Systems requiring parallel light axes
  • Special version
    Operation of parallel light axes
    Heating
    Not influenced by reflective surfaces
  • Supply voltage
    18 ... 30
  • Voltage type
    DC
  • Ambient temperature
    -35 ... 50
  • Interface
    EtherNet TCP/IP
    PROFINET
  • Working range (mm)
    100 ... 40000
  • Pre-mounted
    Mounting plate
  • Manufacturer Leuze

Product attachments

DS_DDLS-508-40-4-H_eng_50132920 (LINK)
