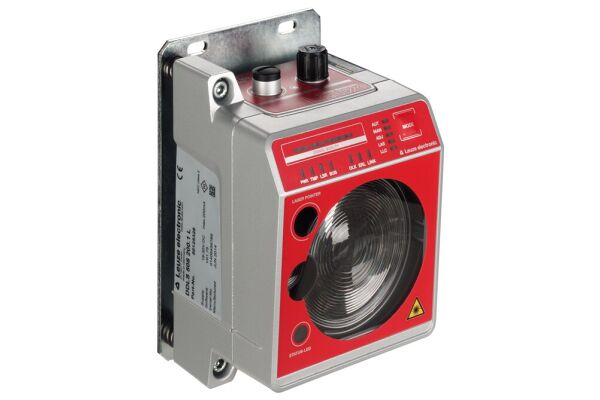

DDLS 508i 120.3 L Optical data transmission

DDLS 508i 120.3 L
This optical data transmission device features a mounting plate, integrated laser alignment aid, and is not influenced by reflective surfaces. It operates parallel light axes and supports remote diagnosis via a web server.
  • SKU
    2110-50134405
  • Manufacturer code
    50134405
  • Ethernet
    true
  • Bus type
    Other
  • Flush-mounted installation
    false
  • Suitable for wall mounting
    true
  • Suitable for DIN rail (top hat rail) mounting
    false
  • Socket outlet adapter
    false
  • Height
    156 mm
  • Width
    100 mm
  • Depth
    99.5 mm
  • Most suitable applications
    Operations requiring precise optical data transmission over long distances (100 to 120,000 mm) Environments with reflective surfaces Remote maintenance and diagnostics
  • Special version
    Operation of parallel light axes
    Integrated laser alignment aid
    Not influenced by reflective surfaces
    Remote diagnosis via web server
  • Supply voltage
    18 ... 30
  • Voltage type
    DC
  • Ambient temperature
    -5 ... 50
  • Interface
    EtherNet TCP/IP
  • Working range (mm)
    100 ... 120000
  • Pre-mounted
    Mounting plate
  • Manufacturer Leuze

Product attachments

DS_DDLS-508i-120-3-L_eng_50134405 (LINK)
