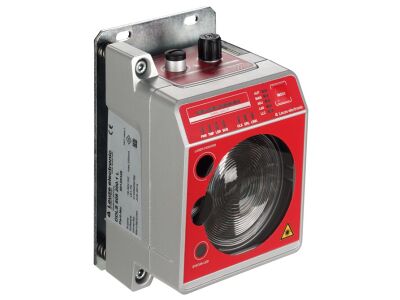

DDLS 548i 200.4 H Optical data transmission

DDLS 548i 200.4 H
This optical data transmission system is designed for operation with parallel light axes and features remote diagnosis via a web server. It is pre-mounted on a mounting plate and remains unaffected by reflective surfaces.
  • SKU
    2110-50134426
  • Manufacturer code
    50134426
  • Ethernet
    false
  • Bus type
    Other
  • Flush-mounted installation
    false
  • Suitable for wall mounting
    true
  • Suitable for DIN rail (top hat rail) mounting
    false
  • Socket outlet adapter
    false
  • Height
    156 mm
  • Width
    100 mm
  • Depth
    99.5 mm
  • Most suitable applications
    Remote diagnosis and maintenance Environments with reflective surfaces Situations requiring stable data transmission over long distances
  • Special version
    Operation of parallel light axes
    Heating
    Not influenced by reflective surfaces
    Remote diagnosis via web server
  • Supply voltage
    18 ... 30
  • Voltage type
    DC
  • Ambient temperature
    -35 ... 50
  • Interface
    PROFINET
  • Working range (mm)
    100 ... 200000
  • Pre-mounted
    Mounting plate
  • Manufacturer Leuze

Product attachments

DS_DDLS-548i-200-4-H_eng_50134426 (LINK)
