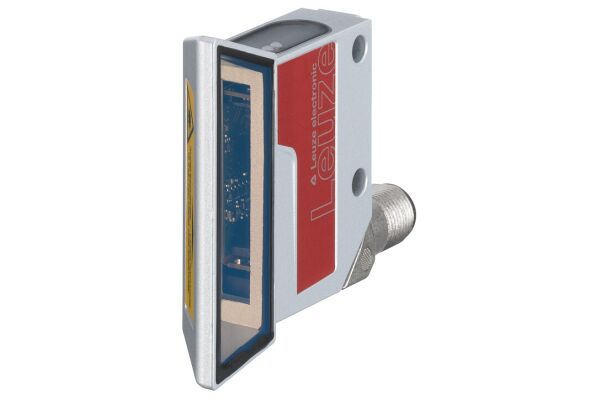

BPS 8 SM 100-01 Bar code positioning system

BPS 8 SM 100-01
A barcode positioning system featuring a binary protocol and laser light source, designed for precise operation.
  • SKU
    2110-50104784
  • Manufacturer code
    50104784
  • Scanning principle
    Other
  • Type of analogy output
    Other
  • Type of electric connection
    Connector M12
  • Type of switching output
    Other
  • Type of switch function
    Other
  • Operation agent-safety class
    Safety class 3
  • Supply voltage
    4.9 - 5.4 V
  • Width sensor
    51 mm
  • Height of sensor
    61 mm
  • Length of sensor
    17.4 mm
  • Setting procedure
    Other
  • Explosion safety category for gas
    None
  • Explosion safety category for dust
    None
  • Construction type housing
    Cuboid
  • Geometrical resolution
    100 mm
  • Laser protection class
    Class 2
  • Type of light
    Laser diode, red light
  • Max. output current
    100 A
  • Measuring principle for optical distance measurement
    Other
  • Interface
    RS-232
  • Degree of protection (IP)
    IP67
  • Voltage type
    DC
    DC
    DC
    DC
  • Ambient temperature
    0 - 40 °C
  • Pre failure notice
    false
  • Material of optical surface
    Glass
  • Housing material
    Other
  • Material of cable sheath
    Other
  • With time function
    false
  • Supply voltage
    4.9 ... 5.4
  • Ambient temperature
    0 ... 40
  • Interface
    RS 232
  • Depth of field (mm)
    60 ... 120
  • Manufacturer Leuze

Product attachments

DS_BPS-8-SM-100-01_eng_50104784 (LINK)
