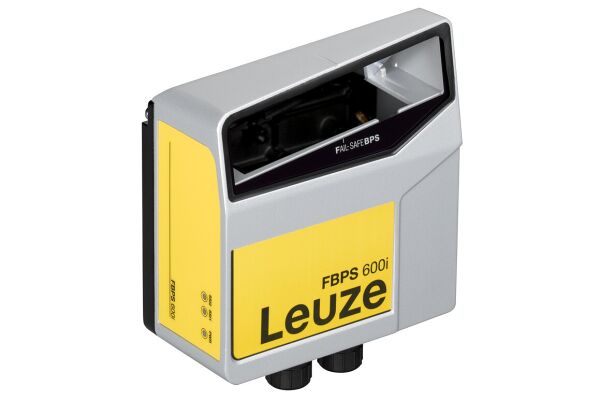

Bar code positioning system with safe position detection.

SKU

50144062
Manufacturer code

50144062
Scanning principle

Other
Type of analogy output

Other
Type of electric connection

Connector M12
Type of switching output

Other
Type of switch function

Other
Operation agent-safety class

Safety class 3
Width sensor

105 mm
Height of sensor

112.5 mm
Length of sensor

51.5 mm
Setting procedure

Other
Explosion safety category for gas

None
Explosion safety category for dust

None
Construction type housing

Cuboid
Geometrical resolution

1 mm
Laser protection class

Class 1
Type of light

Laser diode, red light
Measuring principle for optical distance measurement

Other
Degree of protection (IP)

IP65
Voltage type

DC
DC
DC
DC
Ambient temperature

-5 - 60 °C
Pre failure notice

false
Material of optical surface

Glass
Housing material

Other
Material of cable sheath

Other
With time function

false
Signalling interval

0.8 Hz
Switching frequency

0.08 Hz
Supply voltage

24
Ambient temperature

-5 ... 60
Interface

2-channel SSI with CRC
Depth of field (mm)

50 ... 170
Most suitable applications

Safe position detection in various industrial settings.
Plug outlet

Down

This product is unavailable

This product is currently unavaliable, this could be due to a limited stock shortage, or because of discontinuation or replacement. For more information please contact us at b2b@tipteh.si.
Manufacturer Leuze
