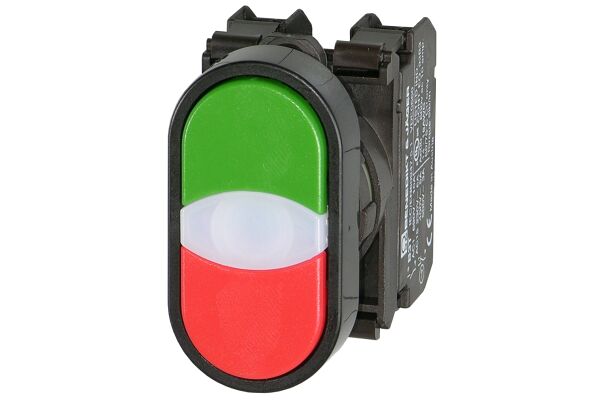

BS3DT G/R/11/L110 Double push button Ø 22mm green/red, 1NO+1NC, 90-120V AC/DC

BS3DT G/R/11/L110

Double push button Ø 22mm green/red, 1NO+1NC, 90-120V AC/DC, ring black

  • SKU
    9005738949615
  • Manufacturer code
    BS3DT G/R/11/L110
  • Number of command positions
    2
  • Button color
    Red-green
  • Construction type lens
    Oval
  • Hole diameter
    22 mm
  • Width opening
    28 mm
  • Height meter opening
    12.5 mm
  • Type of button
    High
  • Suitable for illumination
    false
  • Switching function latching
    false
  • Spring-return
    true
  • With front ring
    true
  • Material front ring
    Plastic
  • Colour front ring
    Black
  • Degree of protection (IP)
    IP65
  • Supply voltage lamp
    110 V
  • Number of contacts as normally open contact
    1
  • Number of contacts as normally closed contact
    1
  • Number of contacts as change-over contact
    1
  • Type of electric connection
    Screw connection
