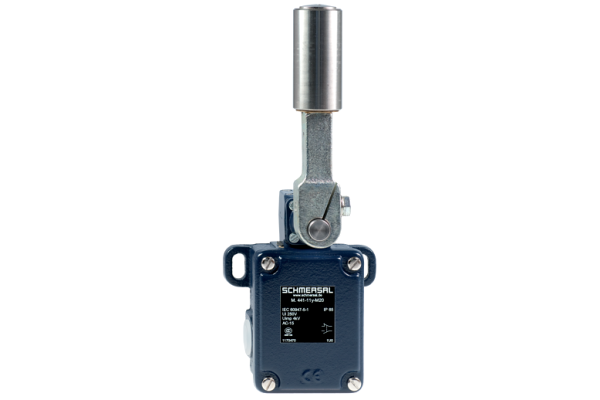

2 cable entries M20
Metal enclosure
2 Contacts
106 mm x 99 mm x 63 mm ( basic component)
Suitable for heavy duty

SKU

4030661019970
Manufacturer code

101081746
CAD, traceparts, product ID

33-22052019-077786
Current, Thermal test current

16 A
Current, Utilisation category AC-15

4 A
Type of Execution, IP Protection class, General

IP65
Type of Execution, Mechanical life, minimum,

10000000 Operations
Switching principle

Slow action
Distance, Contact opening

2 x 6 mm
Height, Sensor

99 mm
Length, Sensor

63 mm
Width, Sensor

106 mm
Electrical data, Cable section, maximum

2.5 mm²
Electrical data, Cable section, minimum

1.5 mm²
Electrical data, Max. fuse rating

16 A gG D-fuse
Electrical data, Utilisation category

AC-15
Material, contacts, electrical

Silver
Housing material

Grey cast iron, galvanised
Material, enclosure coating

painted
Standard, standards

EN IEC 60947-5-1
Number, NC contacts

1
Number, NO contacts

1
PIM maintenance status

Discharge "Online catalog"
PNV, standard, certificates

CCC
Type of switch function

NO contact, NC contact
Type of electric connection

Screw terminals M20 x 1.5
SAP, basic quantity unit

Piece
SAP, EAN (European Article Number)

4030661019970
SAP, product group

Initial
SAP, gross weight

2042.000 g
SAP, net weight

2042.000 g
Temperature, Ambient temperature[generated product variant]

-30 ... +90 °C
Temperature, ambient temperature, maximum

90 °C
Temperature, ambient temperature, minimum

-30 °C
Time, Switching frequency

3000 /h
Voltage, Rated impulse withstand voltage

6 kV
Voltage, rated insulation voltage

400 V
Voltage, Utilisation category AC-15

400 VAC
Web Type

Product range
Type of application, Actuating direction

each time 60° right-hand side and left-hand side rotation
Diameter, Castor

32 mm
Height, Lever

159 mm
Length, Lever

32 mm
Width, Lever

32 mm
