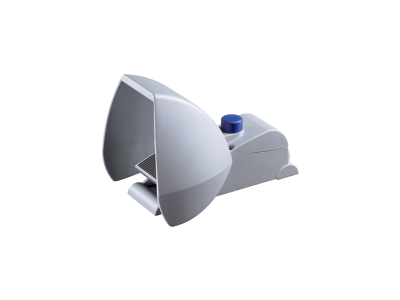

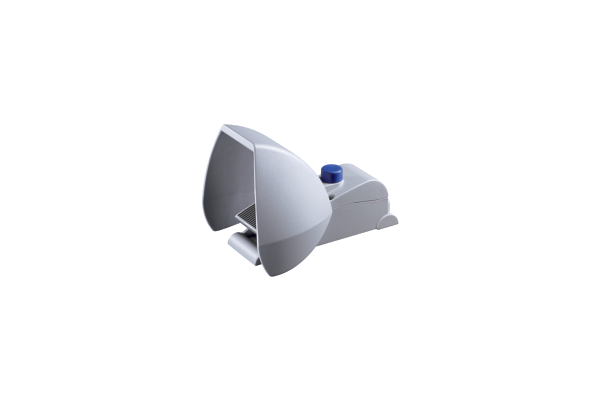

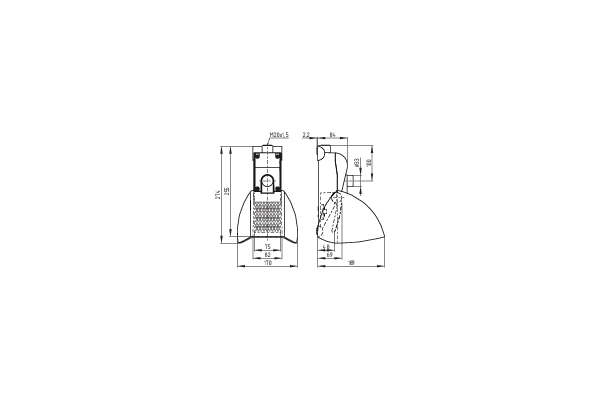

TFH 232-22UEDR Machine safety foot switch

TFH 232-22UEDR
1 Cable entry M 20 x 1.5
Protective shield with wide opening
Low operating height of pedal
High level of stability
  • SKU
    4030661529189
  • Manufacturer code
    151192630
  • Type of application, Relative humidity [generated produtct variant]
    30 ... 95 %
  • Type of application, Relative humidity, maximum
    95 %
  • Type of application, Relative humidity, minimum
    30 %
  • Colour of the product
    White aluminum
  • Current, Required rated short-circuit current to EN 60947-5-1
    1000 A
  • Current, Thermal test current
    10 A
  • Current, Utilisation category AC-15
    4 A
  • Current, Utilisation category DC-13
    1 A
  • Type of Execution, for degree of pollution VDE 0100
    3
  • Type of Execution, IP Protection class, General
    IP65
  • Type of Execution, Mechanical life, minimum,
    1000000 Operations
  • Type of Execution, Overvoltage category VDE 0100
    3
  • Type of Execution, Overvoltage category IEC/EN 60664-1
    III
  • Switching principle
    Slow action
  • Depth, General
    274 mm
  • Height, General
    189 mm
  • Width, General
    170 mm
  • Electrical data, Cable section, maximum
    2.5 mm²
  • Electrical data, Max. fuse rating
    6 A gG D-fuse
  • Electrical data, Utilisation category
    DC-13
    AC-15
  • Housing material
    Aluminium
  • Material, enclosure coating
    powder-coated
  • Material, housing cover
    Aluminium
  • Material, pedal
    Glass-fibre, reinforced thermoplastic
  • Material, protective shield
    Aluminium
  • Standard, standards
    EN IEC 60947-5-1
    DIN VDE 0660-200
    BG-GS-ET-15
  • Note, Electrical Data, Cable section
    All indications including the conductor ferrules.
  • Note, Relative humidity
    non-condensing
    non-icing
  • PIM maintenance status
    Discharge "Online catalog"
  • Type of switch function
    NO contact, NC contact
  • Type of electric connection
    Screw terminals M20 x 1.5
  • Review, Resistance to vibrations to EN 60068-2-6
    10 … 150 Hz, amplitude 0.35 mm / 5 g
  • Review, restistance to shock
    30 g / 11 ms
  • Safety parameters, Mission time
    20 Year(s)
  • Safety parameter
    EN ISO 13849-1
  • SAP, basic quantity unit
    Piece
  • SAP, EAN (European Article Number)
    4030661529189
  • SAP, product group
    HAWA: Electromechanical switchgear
  • SAP, gross weight
    2150.000 g
  • SAP, net weight
    2150.000 g
  • Temperature, Ambient temperature[generated product variant]
    -25 ... +60 °C
  • Temperature, ambient temperature, maximum
    60 °C
  • Temperature, ambient temperature, minimum
    -25 °C
  • Temperature, storage and transport temperature,[generated product variant]
    -25 ... +85 °C
  • Temperature, storage and transport temperature, maximum
    85 °C
  • Temperature, storage and transport temperature, minimum
    -25 °C
  • Time, Switching frequency
    3600 /h
  • Voltage, Rated impulse withstand voltage
    6 kV
  • Voltage, rated insulation voltage
    500 V
  • Voltage, Utilisation category AC-15
    230 VAC
  • Voltage, Utilisation category DC-13
    24 VDC
  • Web Type
    Product range
  • Selection (Yes/No), CADENAS
    Yes
  • Selection (Yes/No), latching
    Yes
  • Selection (Yes/No), Probing possible
    Yes
  • Selection (Yes/No), Suitable for EMERGENCY-OFF
    Yes
  • Selection (Yes/No), Traceparts
    Yes
  • Number, NC contacts
    2
  • Number, NO contacts
    2
  • PNV, standard, certificates
    CCC
    cULus
