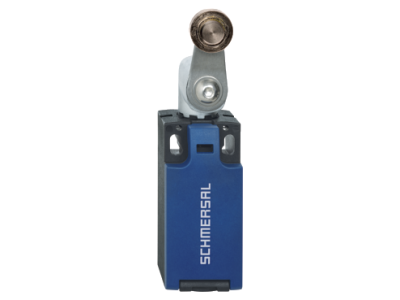

Roller diameter 25 mm
thermoplastic enclosure with foldable latching cover
Quick connection technology as connection terminals rotated by 45°
Simple and quick to adjust the control elements by 45°.
cable entry 1 x M20 x 1,5
Design to EN 50041
LED version available

SKU

4030661555843
Manufacturer code

103036872
Current, Required rated short-circuit current to EN 60947-5-1

400 A
Current, Thermal test current

2 A
Current, Utilisation category AC-15

2 A
Current, Utilisation category DC-13

2 A
Actuating element

Roller lever H300
Type of Execution, Housing construction form

Norm construction design
Type of Execution, IP Protection class, General

IP67
IP66
Type of Execution, Mechanical life, minimum,

10000000 Operations
Height, Sensor

137 mm
134.5 mm
Length, Sensor

37 mm
Width, Sensor

41 mm
Electrical data, Cable section, maximum

1.5 mm²
Electrical data, Cable section, minimum

0.34 mm²
Electrical data, Max. fuse rating

6 A gG D-fuse quick blow
Electrical data, Utilisation category

DC-13
AC-15
Material, contacts, electrical

Silver
Material, housing

Plastic, glass-fibre-reinforced
Material, Castor

Plastic
Movement, actuating speed, maximum

1 m/s
Note, Electrical Data, Cable section

Settle length of the conductor: 5...6mm
Number, Auxiliary contacts

1
PIM maintenance status

Discharge "Online catalog"
Type of switch function

1 NO contact, 2 NC contacts
Type of electric connection

Connector plug M12, 8-pole
Safety parameters, Mission time

20 Year(s)
Safety parameter

EN ISO 13849-1
SAP, basic quantity unit

Piece
SAP, product group

Initial
SAP, gross weight

163.770 g
SAP, net weight

163.770 g
Temperature, Ambient temperature[generated product variant]

-30 ... +80 °C
Temperature, ambient temperature, maximum

80 °C
Temperature, ambient temperature, minimum

-30 °C
Time, Switching frequency

5000 /h
Voltage, Rated impulse withstand voltage

0.8 kV
Voltage, rated insulation voltage

50 VAC
24 VDC
Voltage, Utilisation category AC-15

30 VAC
Voltage, Utilisation category DC-13

24 VDC
Web Type

Product range
Type of Execution, Actuator type DIN EN 50041

A
Movement, actuating speed, minimum

10 mm/min
Number, Safety contacts

2
PNV, standard, certificates

CCC
cULus
SAP, EAN (European Article Number)

4030661555843
Selection (Yes/No), Safety functions

Yes
Force, Positive break force, minimum Force,

50 N
Standard, standards

EN IEC 60947-5-1
Type of Execution, Degree of pollution IEC/EN 60947-1

3
Type of Execution, Overvoltage category IEC/EN 60664-1

II
Safety parameters, B10d, Normally-closed contact (NC),

20000000 Operations
Tightening torque, tightening torque, Electrical connection[generated product variant]

0.6 ... 0.8 Nm
Tightening torque, tightening torque, Electrical connection, maximum

0.8 Nm
Torque, tightening torque, electrical connection, minimum

0.6 Nm
Torque, tightening torque, screw, mounting

1.2 Nm
Material, connector (electrical)

Plastic

This product is unavailable

This product is currently unavaliable, this could be due to a limited stock shortage, or because of discontinuation or replacement. For more information please contact us at b2b@tipteh.si.
Manufacturer Schmersal
