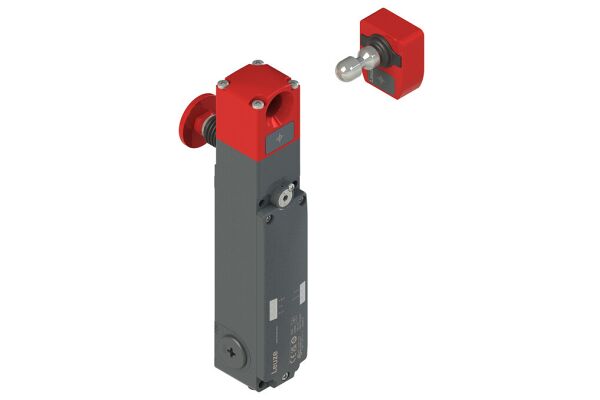

L300-M41M12B8-SLM24-PB-UCA Safety locking device

L300-M41M12B8-SLM24-PB-UCA
The L300 series is a high-performance safety locking device with guard interlocking, designed according to EN ISO 14119 (type 4) standards. It features a quiescent current principle for actuator locking and can achieve a performance level up to e, EN ISO 13849-1.
  • SKU
    2110-50132058
  • Manufacturer code
    50132058
  • With status indication
    false
  • Suitable for safety functions
    true
  • Guard locking force
    9750 N
  • With escape release
    false
  • Type of guard locking
    Quiescent current principle
  • With auxiliary release
    false
  • Rated control supply voltage magnet drive DC
    24 - 24 V
  • Switching principle
    Other
  • Construction type housing
    Cuboid
  • Housing material
    Metal
    Metal
    Metal
    Metal
  • Coating housing
    Powder coating
  • Type of interface
    None
  • Type of interface for safety communication
    None
  • Type of electric connection
    Connector M12
  • Explosion safety category for gas
    None
  • Explosion safety category for dust
    None
  • Ambient temperature during operating
    -20 - 50 °C
  • Degree of protection (IP)
    IP67
  • Series
    L300
  • Operational controls
    Standard
  • Encoding level
    High, EN ISO 14119
  • Release device
    Auxiliary release
    Escape release button
  • Clamping force, maximum
    9750
  • Performance Level (PL)
    Up to and including e
  • ISO Standard
    EN ISO 13849-1
  • Operating principle
    Quiescent current principle – Actuator locked if electromagnet is deactivated
  • Manufacturer Leuze

Product attachments

DS_L300-M41M12B8-SLM24-PB-UCA_eng_50132058 (LINK)
