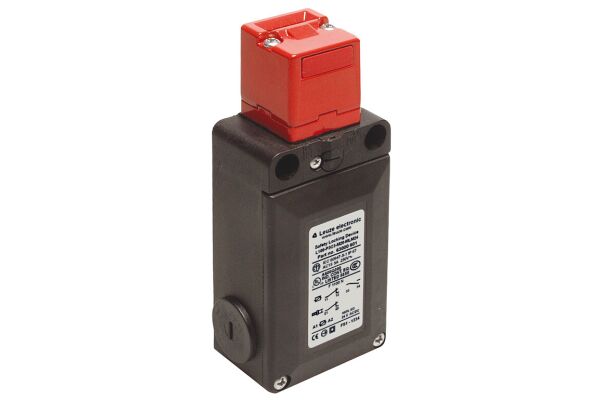

Safety locking device with mechanical guard interlocking and auxiliary release. Integrates in control circuits up to category 4 and features adjustable switch-on current reduction. Operates on the quiescent current principle, locking when deactivated.

SKU

50149762
Manufacturer code

50149762
With status indication

false
Suitable for safety functions

true
Guard locking force

1100 N
With escape release

false
Type of guard locking

Quiescent current principle
With auxiliary release

false
Switching principle

Slow-action switch
Construction type housing

Cuboid
Housing material

Plastic
Plastic
Plastic
Plastic
Coating housing

Uncoated
Type of interface

None
Type of interface for safety communication

None
Type of electric connection

Other
Explosion safety category for gas

None
Explosion safety category for dust

None
Ambient temperature during operating

-25 - 60 °C
Degree of protection (IP)

IP67
Width sensor

62.8 mm
Height of sensor

38.2 mm
Length of sensor

135 mm
Rated operation current Ie at AC-15, 24 V

10 A
Rated operation current Ie at AC-15, 125 V

10 A
Rated operation current Ie at AC-15, 230 V

10 A
Rated operation current Ie at DC-13, 24 V

10 A
Rated operation current Ie at DC-13, 125 V

10 A
Rated operation current Ie at DC-13, 230 V

10 A
Most suitable applications

Mechanical guard interlocking Control circuit integration up to category 4
Series

L100
Clamping force, maximum

1100
Operating principle

Quiescent current principle – Actuator locked if electromagnet is deactivated

This product is unavailable

This product is currently unavaliable, this could be due to a limited stock shortage, or because of discontinuation or replacement. For more information please contact us at b2b@tipteh.si.
Manufacturer Leuze
