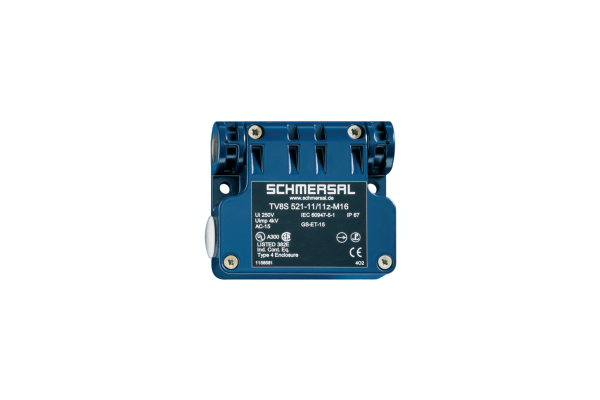

TV8S 521-11/11Z Machine safety switch for hinged guards

TV8S 521-11/11Z
2 cable entries M 16 x 1.5
2 switches in one enclosure
Metal enclosure
Good resistance to oil and petroleum spirit
Mounting independent of hinge
92 mm x 81,5 mm x 27 mm
Variable mounting on hinged side
Rail-mounting possible with slot nuts
2-channel, alternating monitoring
Actuator shaft can be turned 360°
For left or right hinged doors
Push-in system (toothed shaft)
  • SKU
    4030661281261
  • Manufacturer code
    101138421
  • CAD, traceparts, product ID
    33-22052019-077562
  • Current, Thermal test current
    10 A
  • Current, Utilisation category AC-15
    4 A
  • Current, Utilisation category DC-13
    1 A
  • Type of Execution, IP Protection class, General
    IP67
  • Type of Execution, Mechanical life, minimum,
    1000000 Operations
  • Switching principle
    Slow action
  • Angle, Positive break angle
    14 °
  • Height, Sensor
    81.5 mm
  • Length, Sensor
    27 mm
  • Width, Sensor
    92 mm
  • Electrical data, Cable section, maximum
    1 x 1.5 mm²
  • Electrical data, Cable section, minimum
    1 x 0.75 mm²
  • Electrical data, Max. fuse rating
    6 A gG D-fuse
  • Electrical data, Utilisation category
    DC-13
    AC-15
  • Material, contacts, electrical
    Silver
  • Housing material
    Aluminium
  • Note, Electrical Data, Cable section
    All indications including the conductor ferrules.
  • Note, General
    Universal joint to compensate axial displacement
    Switching point subsequently adjustable using hinge L
  • Number, Safety contacts
    1
  • PIM maintenance status
    Discharge "Online catalog"
  • PNV, standard, certificates
    cULus
  • Type of switch function
    NO contact, NC contact
  • Type of electric connection
    Screw terminals M20 x 1.5
  • Safety parameters, Mission time
    20 Year(s)
  • Safety parameter
    EN ISO 13849-1
    EN IEC 60947-5-1
    BG-GS-ET-15
  • SAP, basic quantity unit
    Piece
  • SAP, EAN (European Article Number)
    4030661281261
  • SAP, product group
    Initial
  • SAP, gross weight
    274.000 g
  • SAP, net weight
    274.000 g
  • Temperature, Ambient temperature[generated product variant]
    -25 ... +70 °C
  • Temperature, ambient temperature, maximum
    70 °C
  • Temperature, ambient temperature, minimum
    -25 °C
  • Time, Switching frequency
    1000 /h
  • Voltage, Rated impulse withstand voltage
    4 kV
  • Voltage, rated insulation voltage
    250 VAC
  • Voltage, Utilisation category AC-15
    230 VAC
  • Voltage, Utilisation category DC-13
    24 VDC
  • Web Type
    Product range
  • Number, Auxiliary contacts
    2
  • Mounting hole, Shaft
    10 mm
  • Material, enclosure coating
    painted
  • Tightening torque, Positive break torque
    8 Nm
  • Type of Execution, Cable entry
    2 x M16 x 1.5
  • Note, Mounting hole, Shaft
    Inner toothing
  • Note, Ordering data
    When ordering, first the desired safety switch should be sel
