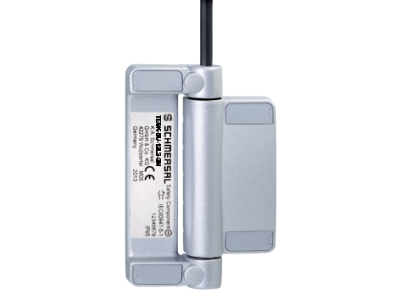

connector plug M12 above
with fixed switching angle
Standard hinge
Metal enclosure

SKU

4030661435701
Manufacturer code

103005756
Current, Thermal test current

2.5 A
Current, Utilisation category AC-15

2 A
Current, Utilisation category DC-13

1 A
Type of Execution, IP Protection class, General

IP65
Type of Execution, Mechanical life, minimum,

1000000 Operations
Switching principle

Slow action
Height, Sensor

116 mm
Length, Sensor

20 mm
Width, Sensor

78 mm
Electrical data, Max. fuse rating

2 A gG D-fuse
Electrical data, Utilisation category

DC-13
AC-15
Material, contacts, electrical

Silver-nickel alloy 10
Housing material

Metal, zinc die-cast
Note, Electrical Data, Cable section

All indications including the conductor ferrules.
Number, Safety contacts

2
PIM maintenance status

Discharge "Online catalog"
PNV, standard, certificates

CCC
cULus
Type of switch function

NO contact, NC contact
Type of electric connection

Connector M12
Safety parameters, Mission time

20 Year(s)
Safety parameter

EN ISO 13849-1
EN IEC 60947-5-1
BG-GS-ET-15
SAP, basic quantity unit

Piece
SAP, EAN (European Article Number)

4030661435701
SAP, product group

Initial
SAP, gross weight

350.000 g
SAP, net weight

350.000 g
Temperature, Ambient temperature[generated product variant]

-25 ... +65 °C
Temperature, ambient temperature, maximum

65 °C
Temperature, ambient temperature, minimum

-25 °C
Time, Switching frequency

1200 /h
Voltage, Rated impulse withstand voltage

0.5 kV
Voltage, rated insulation voltage

30 V
Voltage, Utilisation category AC-15

230 VAC
Voltage, Utilisation category DC-13

24 VDC
Web Type

Product range
Selection (Yes/No), Traceparts

Yes
Number, Auxiliary contacts

1
Colour, housing

Silver
Selection (Yes/No), Alignment aid

Yes
Selection (Yes/No), Mounting outside

No
Selection (Yes/No), Mounting inside

Yes
Selection (Yes/No), Adjustable switching angle

No
Selection (Yes/No), CADENAS

Yes

This product is unavailable

This product is currently unavaliable, this could be due to a limited stock shortage, or because of discontinuation or replacement. For more information please contact us at b2b@tipteh.si.
Manufacturer Schmersal
