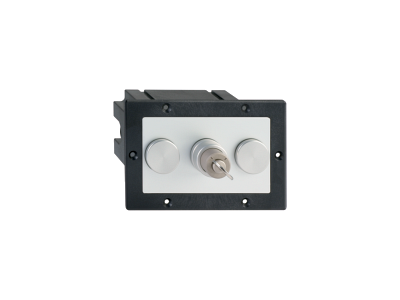

Thermoplastic enclosure
Protection class IP65

SKU

4030661534305
Manufacturer code

101197483
Coding, Key number

102
Housing color

Black
Silver
Colour of the key

Silver
Colour, key head

Silver
Current, Thermal test current

4 A
Current, Utilisation category AC-15

4 A
Current, Utilisation category DC-13

4 A
Type of Execution, IP Protection class, General

IP65
IP20
Type of Execution, Position, Key selector switch

centered
left
right
Type of Execution, Mechanical life, minimum,

100000 Operations
Switching principle

Slow action
Height, Sensor

169 mm
Length, Sensor

144 mm
Width, Sensor

96 mm
Electrical data, Cable section, maximum

2.5 mm²
Electrical data, Cable section, minimum

0.25 mm²
Electrical data, Max. fuse rating

4 A gG D-fuse to DIN EN 60269-1
Electrical data, Utilisation category

DC-13
AC-15
Material, contacts, electrical

Silver
Housing material

Plastic, glass-fibre reinforced thermoplastic, self-extingui
Standard, standards

EN IEC 60947-5-1
EN IEC 60204-1
EN IEC 60947-5-3
EN IEC 62061
EN ISO 14119
EN IEC 60947-5-5
EN IEC 60947-1
Note, Electrical Data, Cable section

All indications including the conductor ferrules.
Note, General

See figure: Operating principle: key 1-3 in pos. 1. Magnet d
Number, Auxiliary contacts

4
Number, Key selector switches

3
Number, Safety contacts

2
PIM maintenance status

Discharge "Online catalog"
Power, electrical consumption, maximum

8.5 W
Type of switch function

NO contact, NC contact
Electrical data, Terminal, Connector, Transmitter, General

Screw terminals M20 x 1.5
Safety parameters, Mission time

20 Year(s)
Safety parameter

EN ISO 13849-1
Included in delivery, number and type, general

Key and triangular tool included in delivery (incl. 1 key fo
Temperature, Ambient temperature[generated product variant]

+0 ... +50 °C
Temperature, ambient temperature, maximum

50 °C
Temperature, ambient temperature, minimum

0 °C
Voltage, Rated control voltage

24 VDC
Voltage, Rated impulse withstand voltage

2.5 kV
Voltage, rated insulation voltage

250 VAC
Voltage, Utilisation category AC-15

230 VAC
Voltage, Utilisation category DC-13

24 VDC
Web Type

Product range
Selection (Yes/No), Manual release

Yes
Selection (Yes/No), Power to unlock

Yes
PNV, standard, certificates

CCC
cULus
TÜV
SAP, basic quantity unit

Piece
SAP, EAN (European Article Number)

4030661534305
SAP, product group

Initial
SAP, gross weight

1020.000 g
SAP, net weight

1020.000 g
Selection (Yes/No), Traceparts

Yes

This product is unavailable

This product is currently unavaliable, this could be due to a limited stock shortage, or because of discontinuation or replacement. For more information please contact us at b2b@tipteh.si.
Manufacturer Schmersal
