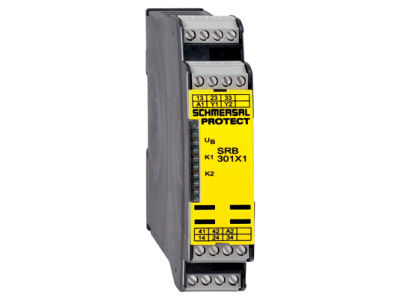

Suitable for the signal processing of outputs with contact sensors
3 safety contacts, STOP 0
1 Signalling output

SKU

4250116201822
Manufacturer code

101170099
Current, Switching capacity, Relay, (Auxiliary contacts), maximum

2 A
Current, Switching capacity, Safe relay outputs, maximum

8 A
Current, Switching capacity, Safe relay outputs, minimum

10 mA
Current, Utilisation category AC-15, Safe relay outputs

6 A
Current, Utilisation category DC-12, Digital output

0.1 A
Current, Utilisation category DC-13, Safe relay outputs

6 A
Type of Execution, Degree of pollution IEC/EN 60664-1

2
Type of Execution, IP Protection class, Clearance

IP54
Type of Execution, IP Protection class, General

IP40
Type of Execution, IP Protection class, clips or terminals

IP20
Type of Execution, Mechanical life, minimum,

10000000 Operations
Type of execution, mounting

Snaps onto standard DIN rail to EN 60715
Type of Execution, Overvoltage category IEC/EN 60664-1

III
Depth, General

121 mm
Height, General

100 mm
Width, General

22.5 mm
Electrical data, Cable section, maximum

2.5 mm²
Electrical data, Conduction resistance, maximum

40 Ω
Electrical data, Contact resistance, maximum

0.1 Ω
Material, contacts, electrical

AgSn0. self-cleaning, positive drive
Housing material

Glass-fibre reinforced thermoplastic, ventilated
Standard, EMC rating

EMC-Directive
Standard, standards

EN IEC 60947-5-1
EN ISO 13849-1
EN IEC 60204-1
EN IEC 60947-5-3
EN IEC 62061
EN IEC 60947-5-5
EN IEC 60947-1
EN IEC 61508
Note, contact resistance

in new state
Note, General

Inductive loads (e.g. contactors, relays, etc.) are to be su
Note, applications

Guard system
Emergency-Stop button
Pull-wire emergency stop switches
Note, Wiring diagram

The wiring diagram is shown with guard doors closed and in d
Automatic start: The automatic start is programmed by conne
Relay outputs: Suitable for 2 channel control, for increase
Input level: The example shows a 2-channel control of a guar
For 1-channel control, connect NC contact to S11/S12 and bri
The control recognises cable break in the monitoring circuit
Number, LED's

3
Number, NC contacts

2
Number, Safety contacts

3
PIM maintenance status

Discharge "Online catalog"
PNV, standard, certificates

cULus
TÜV
CCC
Type of electric connection

Screw terminals M20 x 1.5
rigid or flexible
Review, Resistance to vibrations to EN 60068-2-6

10 ... 55 Hz, Amplitude 0.35 mm
Review, restistance to shock

30 g / 11 ms
Safety parameters, Category, EN ISO 13849, Relay outputs

4
Safety parameters, Mission time, Relay outputs

20 Year(s)
Safety parameter

EN IEC 61508
EN IEC 60947-5-1
Safety parameters, Performance Level, Relay outputs

e
Safety values, PFH value; Relay outputs

0.00000002 /h
Safety parameters, Safety Integrity Level (SIL), Relais outputs

3
Safety parameters, Stop-Category

0
SAP, basic quantity unit

Piece
SAP, EAN (European Article Number)

4250116201822
SAP, product group

Initial
SAP, gross weight

250.000 g
SAP, net weight

250.000 g
Indication, Operating state, LED

Position relay K2
Position relay K1
Temperature, Ambient temperature[generated product variant]

-25 ... +45 °C
Temperature, ambient temperature, maximum

45 °C
Temperature, ambient temperature, minimum

-25 °C
Temperature, storage and transport temperature,[generated product variant]

-40 ... +85 °C
Temperature, storage and transport temperature, maximum

85 °C
Temperature, storage and transport temperature, minimum

-40 °C
Time, Drop-out delay in case of emergency stop, typically

20 ms
Time, Drop-out delay in case of power failure, typically

80 ms
Time, Frequency range

50 Hz
60 Hz
Time, Pull-in delay at automatic start, maximum, typically

100 ms
Time, Pull-in delay at RESET, typically

20 ms
Voltage, Rated control voltage at AC 50 Hz, maximum

240 VAC
Voltage, Rated control voltage at AC 50 Hz, minimum

48 VAC
Voltage, Rated control voltage at AC 60 Hz, maximum

240 VAC
Voltage, Rated control voltage at AC 60 Hz, minimum

48 VAC
Voltage, Rated impulse withstand voltage

4 kV
Voltage, rated operating voltage

48 ... 240 VAC
Voltage, Switching capacity, Relay (auxiliary contacts), maximum

24 VDC
Voltage, Switching capacity, Safe relay outputs, maximum

250 VAC
Voltage, Switching capacity, Safe relay outputs, minimum

10 VDC
Voltage, Utilisation category AC-15, Safe relay outputs

230 VAC
Voltage, Utilisation category DC-12, Digital output

24 VDC
Voltage, Utilisation category DC-13, Safe relay outputs

24 VDC
Web Type

Product range
Selection (Yes/No), Automatic reset function

Yes
Selection (Yes/No), Integral System Diagnostics, status

Yes
Selection, (Yes/No), Wire breakage detection

Yes
Type of application, Terminal designation

IEC/EN 60947-1
Standard, climatic stress

EN 60068-2-78
Tightening torque, torque, clips

0.6 Nm
Selection (Yes/No), Earth connection detection

Yes
Selection (Yes/No), Feedback circuit

Yes
Electrical data, Cable section, minimum

0.25 mm²
Number, Auxiliary contacts

1
Selection (Yes/No), Electronic Fuse

Yes
Selection (Yes/No), Reset with edge detection

Yes
Selection (Yes/No), Start input

Yes
Note, replacement article number

101177167
Power, electrical consumption

2.8 VA
Safety parameters, Common Cause Failure (CCF), Relay outputs, minimum

65
Selection (Yes/No), Removable Terminals

Yes
Selection (Yes/No), EPLAN

Yes
Safety parameters, Diagnostic Coverage (DC) Level, Relay outputs

> 99 %
Voltage, rated operating voltage range, maximum

240 VAC
Voltage, rated operating voltage range, minimum

48 VAC
Voltage, type, range

AC
