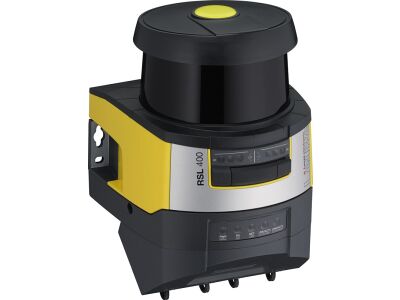

RSL420P-M/CU400P-AIDA-OF Safety laser scanner

RSL420P-M/CU400P-AIDA-OF
This safety laser scanner is AIDA-compliant and equipped with a fiber-optic cable. It features a 270° scanning angle, adjustable protective field resolution, and supports multiple field pairs and protective functions. Ideal for environments that require precise safety and efficiency.
  • SKU
    2110-53800309
  • Manufacturer code
    53800309
  • Scanning interval
    0.09 Hz
  • Number of safety fields
    1
  • Operation agent-safety class
    Safety class 3
  • Width sensor
    140.2 mm
  • Height of sensor
    200 mm
  • Length of sensor
    142 mm
  • With configurable message output
    true
  • Laser protection class
    Class 1
  • Ambient temperature
    0 - 50 °C
  • Response time
    80 s
  • Transmission range of the safety field
    0 m
  • Transmission range of the alert field
    0 m
  • Type of safety according to IEC 61496-1
    3
  • Voltage type
    DC
    DC
    DC
    DC
  • With monitoring function downstream switching devices
    false
  • With alert field output
    false
  • Wavelength of the sensor
    905 nm
  • With restart blockage
    false
  • Suitable for safety functions
    false
  • Most suitable applications
    Industrial safety automation Hazardous area protection
  • Supplyoltage (V)
    24
  • Resolution of protective field (adjustable) (mm)
    30
    40
    50
    60
    70
    150
  • Performance Level (PL)
    d
  • ISO Standard
    EN ISO 13849-1
  • Special version
    AIDA-compliant with fiber-optic cable
  • Connection 1
    PROFINET push-pull 24V, 5 -pin
  • Connection 2
    PROFINET SCRJ push-pull ISO/IEC 61754-24-2
  • Operating range (m)
    0 ... 4.5
  • Manufacturer Leuze

Product attachments

DS_RSL420P-M-CU400P-AIDA-OF_eng_53800309 (LINK)
