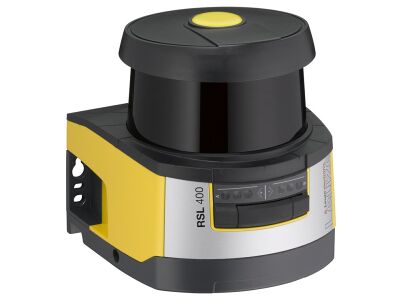

This safety laser scanner offers a 270-degree scanning angle, adjustable protective field resolution, and versatile connectivity, making it ideal for various safety applications.

SKU

2110-53800336
Manufacturer code

53800336
Scanning interval

0.09 Hz
Number of safety fields

4
Type of electric connection

Connector M12
Operation agent-safety class

Safety class 3
Width sensor

140.2 mm
Height of sensor

170 mm
Length of sensor

142 mm
With configurable message output

true
Laser protection class

Class 1
Ambient temperature

0 - 50 °C
Response time

80 s
Transmission range of the safety field

0 m
Transmission range of the alert field

0 m
Type of safety according to IEC 61496-1

3
Voltage type

DC
DC
DC
DC
With monitoring function downstream switching devices

false
With alert field output

false
Wavelength of the sensor

905 nm
With restart blockage

false
Suitable for safety functions

false
Most suitable applications

Industrial safety monitoring Automation systems Hazardous area protection
Supplyoltage (V)

24
Resolution of protective field (adjustable) (mm)

30
40
50
60
70
150
Performance Level (PL)

d
ISO Standard

EN ISO 13849-1
Connection 1

M12, 5 -pin
Connection 2

M12, 4 -pin
Operating range (m)

0 ... 8.25
