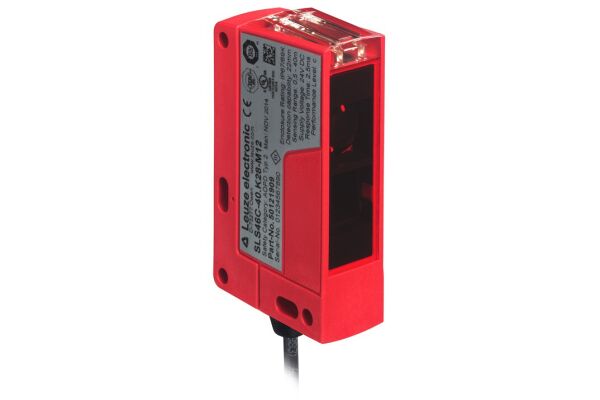

SLS46C-40.K28 Single light beam safety device transmitter

SLS46C-40.K28
Single light beam safety device transmitter with a cubic design and LED light source.
  • SKU
    2110-50121910
  • Manufacturer code
    50121910
  • Number of contact energized outputs with signalling function
    0
  • Number of protected contact energized outputs
    0
  • Type of electric connection
    Cable axial
  • Voltage type
    DC
    DC
    DC
    DC
  • Construction type housing
    Cubic
  • Range of safety field
    40 m
  • Ambient temperature
    -30 - 60 °C
  • Wavelength of the sensor
    630 nm
  • With monitoring function downstream switching devices
    false
  • With restart blockage
    false
  • Response time
    2.5 s
  • Width
    20.5 mm
  • Height
    76.3 mm
  • Length
    44 m
  • Operation agent-safety class
    Safety class 3
  • Explosion safety category for gas
    None
  • Explosion safety category for dust
    None
  • Type of safety according to IEC 61496-1
    2
  • Supplyoltage (V)
    24
  • Design
    Cubic
  • Category
    2
  • ISO Standard
    EN ISO 13849
  • Most suitable applications
    Use in safety systems requiring Type 2 safety devices in combination with a suitable test monitoring unit.
  • Operating range (m)
    0.5 ... 40
  • Operating range limit (m)
    0.5 ... 48
  • Manufacturer Leuze

Product attachments

DS_SLS46C-40-K28_eng_50121910 (LINK)
