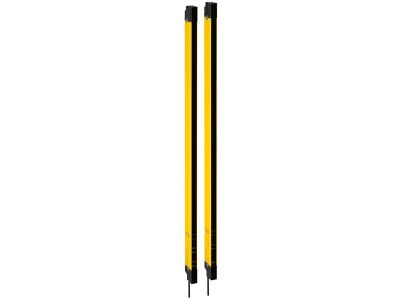

Safety sensor/transmitter set designed for secure operations with high safety standards.

SKU

544036
Manufacturer code

544036
Fade-out possible

false
Type of switching output of the OSSD

Other
Operation agent-safety class

Safety class 3
Detection capability for test bodies

90 mm
Explosion safety category for gas

None
Explosion safety category for dust

None
Cascadable

false
Scope of delivery of the one-way system

Transmitter
With muting function

false
Override possible

false
Resolution of the light curtain

90 mm
Reduced resolution

false
Range, safety field

8 m
Protective field height (mm)

750 mm
Type of safety according to IEC 61496-1

4
Voltage type

DC
With beam coding

true
Clock control possible

false
With monitoring function downstream switching devices

false
With restart blockage

false
Suitable for safety functions

false
Degree of protection (IP)

IP67
Degree of protection (NEMA)

Other
Type of electric connection

Connector M12
Height of sensor

950 mm
Ambient temperature

0 - 55 °C
Wavelength of the sensor

940 nm
Most suitable applications

Industrial safety systems Automated machinery environments
Protective field height (mm)

750
Performance Level (PL)

e
ISO Standard

EN ISO 13849-1
Operating range (m)

0 ... 8
Resolution (mm)

90

This product is unavailable

This product is currently unavaliable, this could be due to a limited stock shortage, or because of discontinuation or replacement. For more information please contact us at b2b@tipteh.si.
Manufacturer Leuze
