Safety light curtain transmitter designed for secure and reliable operation in safety-critical environments.

SKU

2110-68006907
Manufacturer code

68006907
Fade-out possible

false
Type of switching output of the OSSD

Other
Operation agent-safety class

Safety class 3
Detection capability for test bodies

90 mm
Explosion safety category for gas

None
Explosion safety category for dust

None
Cascadable

false
Scope of delivery of the one-way system

Transmitter
With muting function

false
Override possible

false
Resolution of the light curtain

90 mm
Reduced resolution

false
Range, safety field

20 m
Protective field height (mm)

750 mm
Type of safety according to IEC 61496-1

4
Voltage type

Other
With beam coding

true
Clock control possible

false
With monitoring function downstream switching devices

false
With restart blockage

false
Suitable for safety functions

false
Degree of protection (IP)

IP65
Degree of protection (NEMA)

Other
Type of electric connection

Connector M12
Height of sensor

816 mm
Ambient temperature

0 - 55 °C
Wavelength of the sensor

940 nm
Type of interface for safety communication

AS-Interface Safety at Work
Width sensor

29 mm
Length of sensor

35.4 mm
Most suitable applications

Ideal for use in automated industrial environments where safety is a priority.
Protective field height (mm)

750
Type of interface

AS-Interface Safety at Work
Operating range (m)

0 ... 20
Resolution (mm)

90

Cart

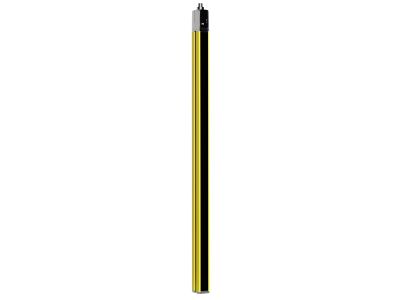

MLC500T90-750/A Safety light curtain transmitter
