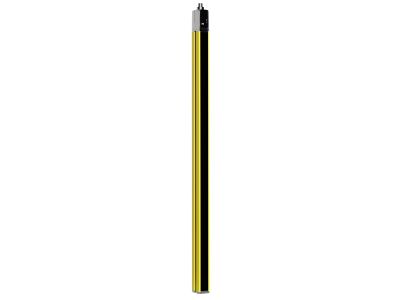

MLC300T40-1800 Safety light curtain transmitter

MLC300T40-1800
Safety light curtain transmitter with a resolution of 40 mm and a protective field height of 1,800 mm.
  • SKU
    2110-68090418
  • Manufacturer code
    68090418
  • Fade-out possible
    false
  • Type of switching output of the OSSD
    Other
  • Operation agent-safety class
    Safety class 3
  • Detection capability for test bodies
    40 mm
  • Explosion safety category for gas
    None
  • Explosion safety category for dust
    None
  • Cascadable
    false
  • Scope of delivery of the one-way system
    Transmitter
  • With muting function
    false
  • Override possible
    false
  • Resolution of the light curtain
    40 mm
  • Reduced resolution
    false
  • Range, safety field
    20 m
  • Protective field height (mm)
    1800 mm
  • Type of safety according to IEC 61496-1
    2
  • Voltage type
    DC
  • With beam coding
    true
  • Clock control possible
    false
  • With monitoring function downstream switching devices
    false
  • With restart blockage
    false
  • Suitable for safety functions
    false
  • Degree of protection (IP)
    IP65
  • Degree of protection (NEMA)
    Other
  • Type of electric connection
    Connector M12
  • Height of sensor
    1866 mm
  • Ambient temperature
    0 - 55 °C
  • Wavelength of the sensor
    940 nm
  • Width sensor
    29 mm
  • Length of sensor
    35.4 mm
  • Protective field height (mm)
    1800
  • Operating range (m)
    0 ... 20
  • Resolution (mm)
    40
  • Manufacturer Leuze

Product attachments

DS_MLC300T40-1800_eng_68090418 (LINK)
