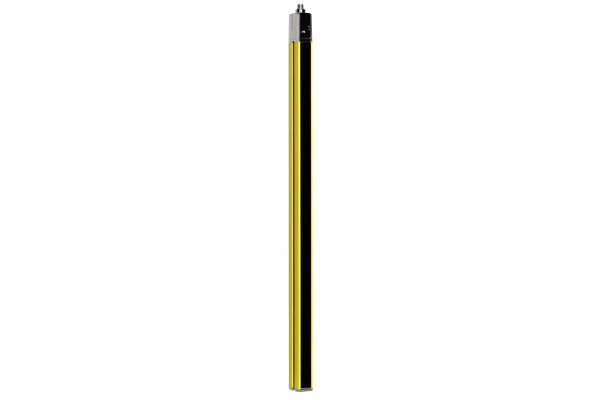

MLC310R20-1500 Safety light curtain receiver

MLC310R20-1500
This safety light curtain receiver offers essential protective features with a basic function package.
  • SKU
    2110-68091215
  • Manufacturer code
    68091215
  • Fade-out possible
    false
  • Type of switching output of the OSSD
    PNP
  • Operation agent-safety class
    Safety class 3
  • Detection capability for test bodies
    20 mm
  • Explosion safety category for gas
    None
  • Explosion safety category for dust
    None
  • Cascadable
    false
  • Scope of delivery of the one-way system
    Receiver
  • With muting function
    false
  • Override possible
    false
  • Resolution of the light curtain
    20 mm
  • Reduced resolution
    false
  • Protective field height (mm)
    1500 mm
  • Type of safety according to IEC 61496-1
    2
  • Voltage type
    DC
  • With beam coding
    true
  • Clock control possible
    false
  • With monitoring function downstream switching devices
    false
  • With restart blockage
    false
  • Suitable for safety functions
    false
  • Degree of protection (IP)
    IP65
  • Degree of protection (NEMA)
    Other
  • Type of electric connection
    Connector M12
  • Height of sensor
    1566 mm
  • Ambient temperature
    -15 - 55 °C
  • Number of protected semiconductor outputs
    2
  • Number of protected contact energized outputs
    2
  • Max. output current at protected output
    380 mA
  • Switching voltage of OSSD at state "high"
    18 V
  • Width sensor
    29 mm
  • Length of sensor
    35.4 mm
  • Protective field height (mm)
    1500
  • Performance Level (PL)
    c
  • Category
    2
  • ISO Standard
    EN ISO 13849
    EN ISO 13849-1
  • Resolution (mm)
    20
  • Manufacturer Leuze

Product attachments

DS_MLC310R20-1500_eng_68091215 (LINK)
