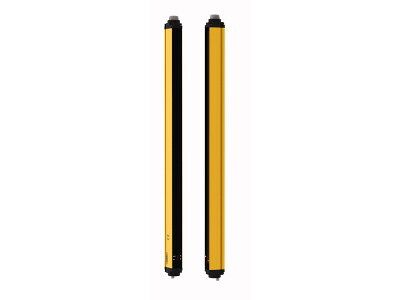

SGSMP2-500Q128 Safety Light Curtain, Emitter and Receiver with Muting Function, 2 Beams, Beam S

SGSMP2-500Q128

Safety Light Curtain, Emitter and Receiver with Muting Function, 2 Beams, Beam Spacing 500 mm, Operating voltage 19.2…28.8 VDC, Max. range 30000 mm, Emitter/receiver pair, Light beams: 2, Resolution: 500 mm, Receiver: M12 male connector, 12-pin and 5-pin (muting sensor), Emitter: M12 male connector, 8-pin, Scan codes, automatic/manual — start/restart, integrated muting, EDM, Range: 30 m, Operating voltage 24 VDC ±20 %, Scan field: 500 mm, SIL 3 (IEC 61508), PL e (ISO 13849-1)

  • SKU
    0662488022679
  • Manufacturer code
    3803225
  • Ambient temperature
    0 - 55 °C
  • Wavelength of the sensor
    950 nm
  • Max. output current at protected output
    500 mA
  • Response time
    12 s
  • Width
    52 mm
  • Height
    606.35 mm
  • Length
    56.9 m
  • Number of beams
    2
    2
    2
  • Approvals / Compliance
    SIL 3
  • Connector gender
    male - male
  • Beam spacing (mm)
    500

  • This product is unavailable

    This product is currently unavaliable, this could be due to a limited stock shortage, or because of discontinuation or replacement. For more information please contact us at b2b@tipteh.si.

  • Manufacturer Turck

Product attachments

file-54165-de6f5d5396d2e500142891e27fb8064d.pdf (PDF, 40.13 kB)
