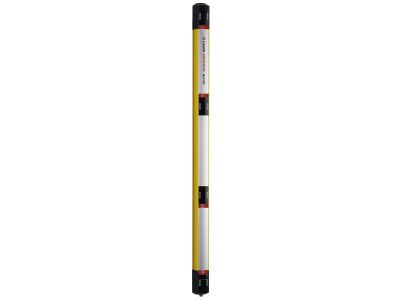

MLD510-R4LM/A Multiple light beam safety device receiver

MLD510-R4LM/A
A multiple light beam safety device receiver with integrated muting and status indicators, and a reflective element for laser alignment aid.
  • SKU
    2110-66535301
  • Manufacturer code
    66535301
  • Number of contact energized outputs with signalling function
    0
  • Number of protected contact energized outputs
    0
  • Number of beams
    4
    4
    4
    4
  • Model
    Transmitter and receiver separated
  • Type of electric connection
    Connector M12
  • Detection capability for test bodies
    300 mm
  • Scope of delivery of the one-way system
    Receiver
  • Voltage type
    DC
  • Beam spacing
    300 mm
  • Cascadable
    false
  • With muting function
    false
  • With beam coding
    true
  • With monitoring function downstream switching devices
    false
  • With restart blockage
    false
  • Override possible
    false
  • Pre failure notice
    false
  • Condition analysis system
    false
  • Explosion safety category for gas
    None
  • Explosion safety category for dust
    None
  • Type of safety according to IEC 61496-1
    4
  • Ambient temperature
    -30 - 55 °C
  • Width
    52 mm
  • Height
    1000 mm
  • Length
    64.7 m
  • Operation agent-safety class
    Safety class 3
  • Response time
    30 s
  • Type of interface for safety communication
    AS-Interface Safety at Work
  • Beam spacing (mm)
    300
  • Special version
    Reflective element for laser alignment aid
    Integrated muting indicator
    Integrated status indicator
  • Performance Level (PL)
    e
  • ISO Standard
    EN ISO 13849-1
    EN ISO 13849
  • Category
    4
  • Manufacturer Leuze

Product attachments

DS_MLD510-R4LM-A_eng_66535301 (LINK)
