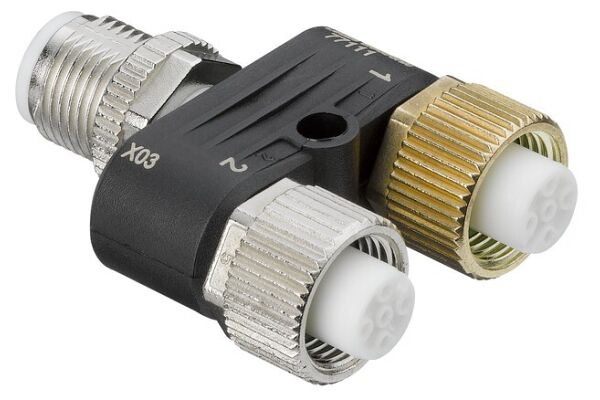

YV U-SDD-25-25-25-X03 Y distribution box

YV U-SDD-25-25-25-X03
Y distribution box with three M12 connections.
  • SKU
    2110-50135995
  • Manufacturer code
    50135995
  • Type of connector for trunk line
    Other
  • Number of sensor-/actuator-slots
    3
  • Type of branches for sensor-/actuator cables
    M12
  • Number of poles
    5
  • Thread sleeves sensor/actuator slots
    M12
  • With LED indication
    false
  • With potential separation
    false
  • Operating temperature
    -25 - 85 °C
  • Degree of protection (IP)
    IP67
  • Explosion safety category for gas
    None
  • Explosion safety category for dust
    None
  • Width
    36 mm
  • Height
    16 mm
  • Length
    45 m
  • Connection 1
    M12, 5 -pin
  • Connection 2
    M12, 5 -pin
  • Connection 3
    M12, 5 -pin
  • Coding
    C1: A-coded
    C2: A-coded
    C3: A-coded
  • Number of connections
    3
  • Connector orientation
    Axial - Axial - Axial
  • Connector type
    male - female - female
  • Manufacturer Leuze

Product attachments

DS_YV-U-SDD-25-25-25-X03_eng_50135995 (LINK)
