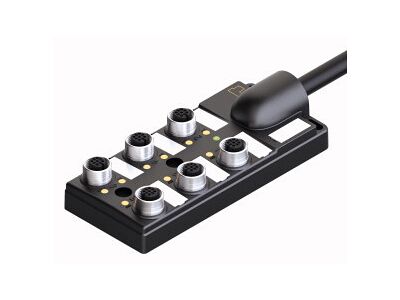

TB-6M12-4-2/TXL Passive actuator/sensor junction box, M12 x 1, 6-port, with integral homerun cab

TB-6M12-4-2/TXL

Passive actuator/sensor junction box, M12 x 1, 6-port, with integral homerun cable, Voltage 30 V, Cable length 2 m, Housing material: Nylon, Housing color: black, Protection class IP67, RoHS-compliant, CE compliant, I/O port (number of pins): 3-pin + PE

  • SKU
    4047101275858
  • Manufacturer code
    6611924
  • Material of contact surface
    Gold
  • Material insulation body
    Polyamide (PA)
  • With LED indication
    false
  • Housing material
    Plastic
  • Length of the preassembled cable
    2 m
  • Type of branches for sensor-/actuator cables
    M12
  • Operating voltage
    30 - 30 V
  • Operating temperature
    -40 - 85 °C
  • Material contact body
    Brass
  • Thread sleeves sensor/actuator slots
    M12
  • Rated voltage
    30
  • Housing color
    Black
  • Cable length (m)
    2
  • Manufacturer Turck
