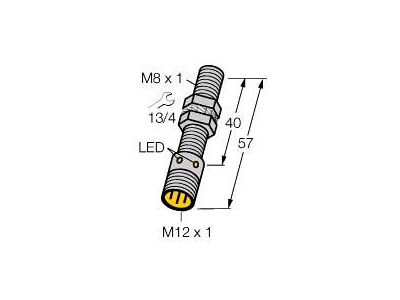

BI1.5-EG08-LU-H1341 Inductive Sensor, With Analog Output

BI1.5-EG08-LU-H1341

Inductive Sensor, With Analog Output, Operating voltage 15…30 VDC, Measuring range 0.25 mm - 1.25 mm, Flush, Threaded barrel, M8 x 1, Stainless steel, 1.4427 SO, 3‐wire, 15…30 VDC, Analog output, 0…10 V, M12 x 1 male connector

  • SKU
    4047101145847
  • Manufacturer code
    1533004
  • Operating voltage
    15 - 30 V
  • Supply voltage
    15 - 30 V
  • Limiting frequency
    200 Hz
  • Relative linearity deflection
    3 %
  • Measuring range
    0.25 - 1.25 mm
  • Type of electric connection
    Plug-in connection
  • Type of analogy output
    0 V ... 10 V
  • Mechanical mounting condition for sensor
    Concise
  • Housing material
    Stainless steel
  • Material active area of sensor
    Plastic
  • Construction type housing
    Cylinder, screw-thread
  • Length of sensor
    57 mm
  • Diameter sensor
    8 mm
  • Ambient temperature
    -25 - 70 °C
  • Degree of protection (IP)
    IP67
  • Flush / Non-flush
    Flush
  • Connector gender
    male
  • Manufacturer Turck

Product attachments

file-47186-49bbdec19529769b48a044612ff9dd24.pdf (PDF, 537.46 kB)
