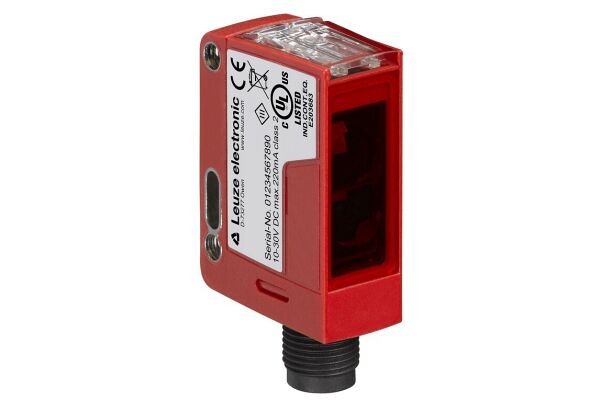

Dynamic reference diffuse sensor with a red LED light source. It features two digital switching outputs and is designed for reliable operation in various environments.

SKU

2110-50141897
Manufacturer code

50141897
Pre failure notice

false
With time function

false
Max. output current

100 A
With reflector

false
Analogue output 0 V ... 10 V

false
Analogue output 0 mA ... 20 mA

false
Analogue output 4 mA ... 20 mA

false
Analogue output -10 V ... +10 V

false
With other analogue output

false
With communication interface analogue

false
With communication interface AS-Interface

false
With communication interface CANOpen

false
With communication interface DeviceNet

false
With communication interface Ethernet

false
With communication interface INTERBUS

false
With communication interface PROFIBUS

false
With communication interface RS-232

false
With communication interface RS-422

false
With communication interface RS-485

false
With communication interface SSD

false
With communication interface SSI

false
Number of semiconductor outputs with signalling function

2
Number of protected semiconductor outputs

0
Number of protected contact energized outputs

0
Type of switching output

PNP/NPN
Type of switch function

Anticoincidence
Operation agent-safety class

Safety class 3
Explosion safety category for gas

None
Explosion safety category for dust

None
Construction type housing

Cuboid
Width sensor

15 mm
Height of sensor

42.7 mm
Length of sensor

30 mm
Sensing mode

Light-/dark switching
Material of optical surface

Plastic
Housing material

Plastic
Plastic
Plastic
Plastic
Max. output current at protected output

0 mA
Ambient temperature

-10 - 50 °C
Response time

0.66 s
Switching frequency

750 Hz
Switching voltage of OSSD at state "high"

0 V
Rated control supply voltage DC

12 - 30 V
Voltage type

DC
DC
DC
DC
With monitoring function downstream switching devices

false
Wavelength of the sensor

645 nm
Type of light

Polarity free red light
With restart blockage

false
Suitable for safety functions

false
Degree of protection (IP)

Other
Setting procedure

Teach-In
Material of cable sheath

Other
Min. reflector distance

50 mm
Transmission range of the safety field

0.05 m
Supply voltage

12 ... 30
Construction type housing

Cubic
Switching frequency

750
Ambient temperature, operation (°C)

-10 ... 50
Most suitable applications

Industrial automation Material handling systems Packaging machinery
Standard for interfaces

IO-Link
Operational controls

Teach button
