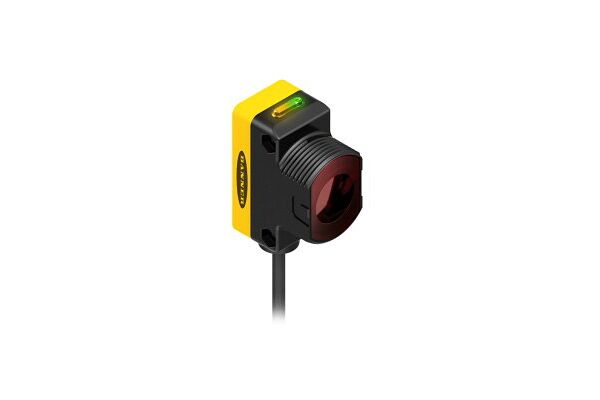

QS30D Photoelectric Sensor, Diffuse Mode Sensor

QS30D

Photoelectric Sensor, Diffuse Mode Sensor, Operating voltage 10…30 VDC, Max. range 1000 mm, Cable length 2 m, Cable, PVC, 2 m, Protection class IP67, LED all-round visible, Sensitivity adjusted via potentiometer, Operating voltage: 10…30 VDC, Switching output, bipolar, Light or dark operation

  • SKU
    0662488726041
  • Manufacturer code
    3072604
  • Type of electric connection
    Cable
  • Type of switching output
    PNP/NPN
  • Type of switch function
    Normally open contact (NO)
  • Construction type housing
    Cuboid

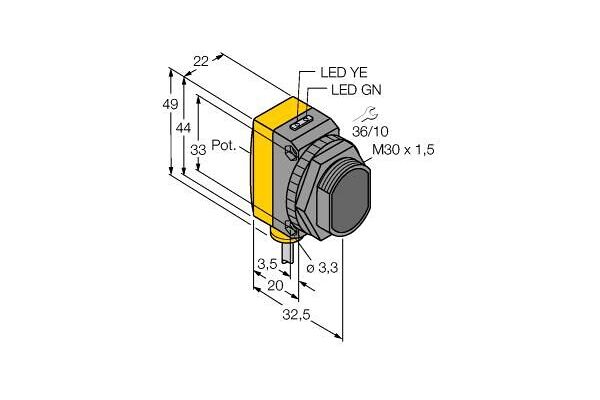

  • Width sensor
    22 mm
  • Height of sensor
    49 mm
  • Length of sensor
    35 mm
  • Sensing mode
    Light switching
    Dark switching
  • Material of optical surface
    Plastic
  • Ambient temperature
    -20 - 70 °C
  • Response time
    2 s
  • Switching frequency
    250 Hz
  • Wavelength of the sensor
    940 nm
  • Type of light
    Infrared light
  • Suitable for safety functions
    false
  • Degree of protection (IP)
    IP67
  • Material of cable sheath
    Polyvinyl chloride (PVC)
  • Max. switching distance
    1000 mm
  • Diameter sensor
    30 mm
  • Housing material
    Plastic
  • Type of switching output
    PNP/NPN
  • Cable length (m)
    2

  • This product is unavailable

    This product is currently unavaliable, this could be due to a limited stock shortage, or because of discontinuation or replacement. For more information please contact us at b2b@tipteh.si.

  • Manufacturer Turck

Product attachments

file-44548-b84b5db18b9afb7d58c9cb921c6a48ff.pdf (PDF, 666.13 kB)
