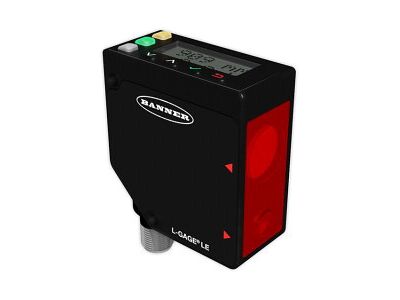

LE550UW/30 Photoelectric Sensor, Diffuse-Mode Laser Sensor (Triangulation), With Analog Out

LE550UW/30

Photoelectric Sensor, Diffuse-Mode Laser Sensor (Triangulation), With Analog Output, Operating voltage 12…30 VDC, Max. range 1000 mm, Cable length 9 m, 2-digit 8-segment display, Cable, PVC, 9 m, Range: 100…1000 mm, Laser class 2, red, 650 nm, acc. to IEC 60825-1:2007, Resolution at 100 mm - 600 mm distance:

  • SKU
    0662488867539
  • Manufacturer code
    3086753
  • Type of electric connection
    Cable
  • Type of switching output
    PNP/NPN
  • Type of switch function
    Normally open contact (NO)
  • Construction type housing
    Cuboid

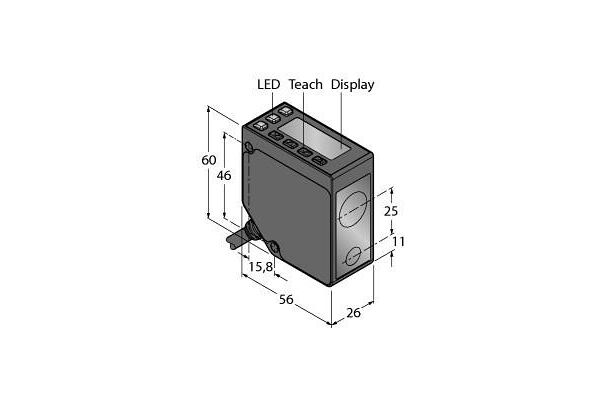

  • Width sensor
    26 mm
  • Height of sensor
    60 mm
  • Length of sensor
    56 mm
  • Material of optical surface
    Plastic
  • Switching frequency
    250 Hz
  • Laser protection class
    Class 2
  • Type of light
    Polarity free red light
  • Degree of protection (IP)
    IP67
  • Material of cable sheath
    Polyvinyl chloride (PVC)
  • Type of analogy output
    0 V ... 10 V
  • Supply voltage
    12 - 30
  • Housing material
    Other
  • Type of switching output
    PNP/NPN
  • Cable length (m)
    9

  • This product is unavailable

    This product is currently unavaliable, this could be due to a limited stock shortage, or because of discontinuation or replacement. For more information please contact us at b2b@tipteh.si.

  • Manufacturer Turck

Product attachments

file-46429-0ccdd38d7a6e84ff796682ee785c06ec.pdf (PDF, 582.76 kB)
