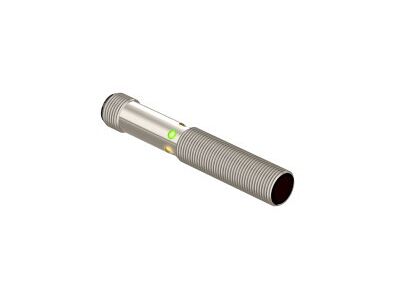

M12NDQ8 Photoelectric Sensor, Diffuse Mode Sensor

M12NDQ8

Photoelectric Sensor, Diffuse Mode Sensor, Operating voltage 10…30 VDC, Max. range 400 mm, Male M12 × 1, 4-pin, Protection classes IP67 / IP68, Metal housing, LED all-round visible, Indication of insufficient excess gain, Sensitivity adjustable via potentiometer, Operating voltage: 10…30 VDC, NPN switching output, changeover

  • SKU
    0662488771812
  • Manufacturer code
    3077181
  • Type of electric connection
    Connector M12
  • Type of switching output
    NPN
  • Type of switch function
    Change-over contact (NO/NC)
  • Length of sensor
    74 mm
  • Material of optical surface
    Plastic
  • Ambient temperature
    -20 - 60 °C
  • Response time
    0.5 s
  • Switching frequency
    1000 Hz
  • Wavelength of the sensor
    660 nm
  • Type of light
    Polarity free red light
  • Suitable for safety functions
    false
  • Degree of protection (IP)
    IP67
  • Setting procedure
    Other
  • Material of cable sheath
    Polyvinyl chloride (PVC)
  • Max. switching distance
    400 mm
  • Diameter sensor
    12 mm
  • Housing material
    Metal
  • Type of switching output
    NPN
  • Connector gender
    male

  • This product is unavailable

    This product is currently unavaliable, this could be due to a limited stock shortage, or because of discontinuation or replacement. For more information please contact us at b2b@tipteh.si.

  • Manufacturer Turck

Product attachments

file-52345-2563312dc19f1b67ebdfde4d38fafc2d.pdf (PDF, 394.41 kB)
