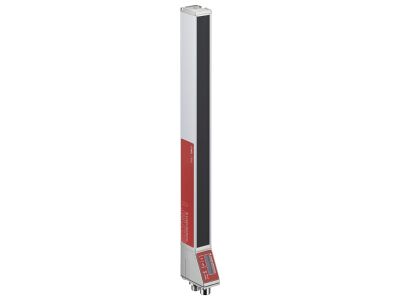

CML730i-R05-800.A/D3-M12 Light curtain receiver

CML730i-R05-800.A/D3-M12
Light curtain receiver with specialized beam scanning options.
  • SKU
    2110-50123279
  • Manufacturer code
    50123279
  • Type of electric connection
    Connector M12
  • Operation agent-safety class
    Safety class 3
  • Explosion safety category for gas
    None
  • Explosion safety category for dust
    None
  • Width sensor
    29 mm
  • Height of sensor
    35.4 mm
  • Length of sensor
    875 mm
  • Transmission range of the safety field
    4.5 m
  • Voltage type
    DC
    DC
    DC
    DC
  • With monitoring function downstream switching devices
    false
  • With restart blockage
    false
  • Degree of protection (IP)
    IP65
  • Suitable for safety functions
    false
  • Ambient temperature
    -30 - 60 °C
  • Rated control supply voltage DC
    18 - 30 V
  • Fade-out possible
    false
  • Type of switching output of the OSSD
    Other
  • Detection capability for test bodies
    10 mm
  • Cascadable
    false
  • Scope of delivery of the one-way system
    Receiver
  • With muting function
    false
  • Override possible
    false
  • Resolution of the light curtain
    10 mm
  • Reduced resolution
    false
  • Safety field height
    800 mm
  • With beam coding
    true
  • Clock control possible
    false
  • Degree of protection (NEMA)
    Other
  • Response time
    0.01 s
  • Special version
    Diagonal-beam scanning
    Crossed-beam scanning
    Parallel-beam scanning
  • Supplyoltage (V)
    18 ... 30
  • Interface
    RS 485 Modbus
  • Beam spacing (mm)
    5
  • Operating range (m)
    0.1 ... 4.5
  • Manufacturer Leuze

Product attachments

DS_CML730i-R05-800-A-D3-M12_eng_50123279 (LINK)
