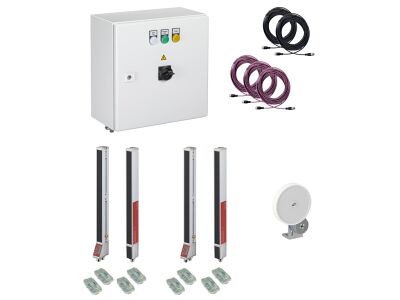

CMS708i-ENC1-0560-0800 Contour measurement system

CMS708i-ENC1-0560-0800
Contour measurement system with versatile operating range and connectivity.
  • SKU
    2110-50143579
  • Manufacturer code
    50143579
  • Operation agent-safety class
    Safety class 0
  • Explosion safety category for gas
    None
  • Explosion safety category for dust
    None
  • Transmission range of the safety field
    4.5 m
  • Voltage type
    Other
    AC
  • With monitoring function downstream switching devices
    false
  • With restart blockage
    false
  • Degree of protection (IP)
    Other
  • Suitable for safety functions
    false
  • Ambient temperature
    0 - 45 °C
  • Fade-out possible
    false
  • Type of switching output of the OSSD
    Other
  • Cascadable
    false
  • With muting function
    false
  • Override possible
    false
  • Resolution of the light curtain
    5 mm
  • Reduced resolution
    false
  • Safety field height
    560 mm
  • With beam coding
    true
  • Clock control possible
    false
  • Degree of protection (NEMA)
    Other
  • Number of semiconductor outputs with signalling function
    4
  • Rated control supply voltage AC 50 Hz
    100 - 263 V
  • Rated control supply voltage AC 60 Hz
    100 - 263 V
  • Supplyoltage (V)
    100 ... 263
  • Interface
    EtherNet TCP/IP
  • Measurement field length 1 (mm)
    560
  • Measurement field length 2 (mm)
    800
  • Operating range (m)
    0.1 ... 4.5
  • Manufacturer Leuze

Product attachments

DS_CMS708i-ENC1-0560-0800_eng_50143579 (LINK)
