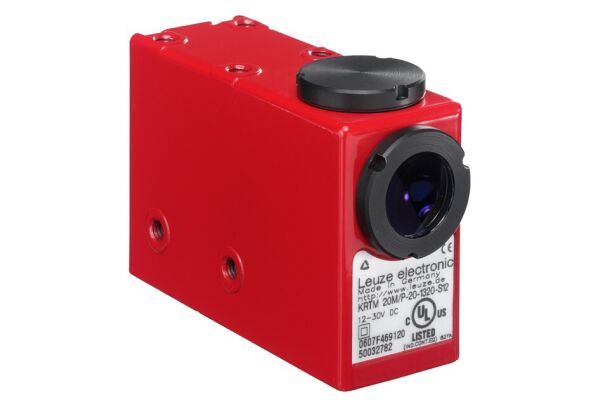

KRTM 20M/V-20-0001-S12 Contrast sensor

KRTM 20M/V-20-0001-S12
A contrast sensor with autocollimation and crop mark system capabilities, featuring a compact design and robust metal housing. It offers precise detection using an RGB LED light source, suitable for various industrial applications.
  • SKU
    2110-50035674
  • Manufacturer code
    50035674
  • Number of semiconductor outputs with signalling function
    1
  • Number of contact energized outputs with signalling function
    1
  • Type of electric connection
    Connector M12
  • Type of switching output
    PNP
  • Type of switch function
    Other
  • With blanking function
    false
  • Operation agent-safety class
    Safety class 3
  • Rated control supply voltage DC
    12 - 30 V
  • Voltage type
    DC
    DC
    DC
    DC
  • Width sensor
    30 mm
  • Height of sensor
    80 mm
  • Length of sensor
    53 mm
  • Setting procedure
    Manual adjustment
  • Construction type housing
    Cuboid
  • Laser protection class
    Other
  • No-load current
    0 mA
  • Type of light
    Multi-coloured LED
  • With fibre optics connection
    false
  • Switching frequency
    16000 Hz
  • Degree of protection (IP)
    IP67
  • Ambient temperature
    -25 - 60 °C
  • With exchange lens
    false
  • Material of optical surface
    Other
  • Housing material
    Other
    Metal
  • With time function
    false
  • Most suitable applications
    Crop mark detection Autocollimation tasks
  • Special version
    Autocollimation
    Crop mark system
  • Supplyoltage (V)
    12 ... 30
  • Switching frequency (Hz)
    16000
  • Operational controls
    Membrane keyboard
    Via service interface
  • Analog outputs
    1
  • Analog output
    Current
  • Operating range (m)
    0.020
  • Manufacturer Leuze

Product attachments

DSw_KRT20_fmt_10e_en (LINK)
