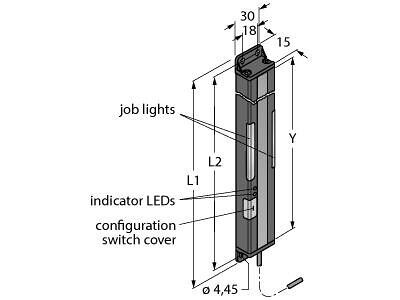

PVA300N6E Pick-to-Light, Placement Sensor, Light Grid

PVA300N6E

Pick-to-Light, Placement Sensor, Light Grid, Operating voltage 12…30 VDC, Max. range 2000 mm, Cable length 2 m, Scan field Y: 300 mm, Total height 341.4 mm, 13-beam system, beam spacing 25 mm, Emitter, Range max. 2 m, Light / Dark operation, Selectable frequency as protection against crosstalk, Operating voltage 12…30 VDC, Input of operation request light +24 VDC, Protection class IP62

  • SKU
    0662488519278
  • Manufacturer code
    3051927
  • Sensing mode
    Light switching
    Dark switching
  • Cable length (m)
    2
  • Number of beams
    13
  • Beam spacing (mm)
    25

  • This product is unavailable

    This product is currently unavaliable, this could be due to a limited stock shortage, or because of discontinuation or replacement. For more information please contact us at b2b@tipteh.si.

  • Manufacturer Turck

Product attachments

file-45143-80bd2ee308e6dcaf14c7d36a4f1a6ccb.pdf (PDF, 249.17 kB)
