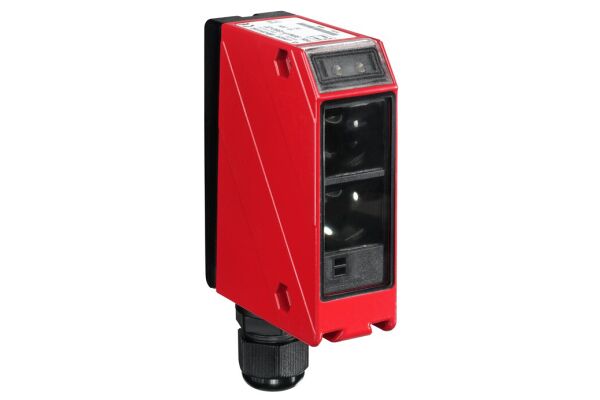

PRK 96M/R-3420-25 Polarized retro-reflective photoelectric sensor

PRK 96M/R-3420-25
Polarized retro-reflective photoelectric sensor with a wide operating range and durable metal housing.
  • SKU
    2110-50082066
  • Manufacturer code
    50082066
  • Pre failure notice
    false
  • With time function
    false
  • Rated switching distance
    15000 mm
  • Max. switching distance
    15000 mm
  • With reflector
    false
  • Analogue output 0 V ... 10 V
    false
  • Analogue output 0 mA ... 20 mA
    false
  • Analogue output 4 mA ... 20 mA
    false
  • Analogue output -10 V ... +10 V
    false
  • With other analogue output
    false
  • With communication interface analogue
    false
  • With communication interface AS-Interface
    false
  • With communication interface CANOpen
    false
  • With communication interface DeviceNet
    false
  • With communication interface Ethernet
    false
  • With communication interface INTERBUS
    false
  • With communication interface PROFIBUS
    false
  • With communication interface RS-232
    false
  • With communication interface RS-422
    false
  • With communication interface RS-485
    false
  • With communication interface SSD
    false
  • With communication interface SSI
    false
  • Number of semiconductor outputs with signalling function
    1
  • Number of protected semiconductor outputs
    0
  • Type of electric connection
    Clamp
  • Type of switching output
    Other
  • Operation agent-safety class
    Safety class 2
  • Explosion safety category for gas
    None
  • Explosion safety category for dust
    None
  • Construction type housing
    Cuboid
  • Width sensor
    30 mm
  • Height of sensor
    90 mm
  • Length of sensor
    70 mm
  • Sensing mode
    Light switching
  • Material of optical surface
    Glass
  • Housing material
    Metal
    Metal
    Metal
    Metal
  • Min. reflector distance
    300 mm
  • Ambient temperature
    -40 - 55 °C
  • Response time
    0 s
  • Switching frequency
    20 Hz
  • Voltage type
    DC
    AC/DC
  • With monitoring function downstream switching devices
    false
  • Laser protection class
    None
  • Wavelength of the sensor
    0 nm
  • Type of light
    Polarity free red light
  • With restart blockage
    false
  • Suitable for safety functions
    false
  • Degree of protection (IP)
    IP67
  • Setting procedure
    Manual adjustment
  • Rated control supply voltage AC 50 Hz
    20 - 230 V
  • Rated control supply voltage AC 60 Hz
    20 - 230 V
  • Supplyoltage (V)
    20 ... 230
  • Construction type housing
    Cubic
  • Ambient temperature, operation (°C)
    -40 ... 55
  • Operating range limit (m)
    0.1 ... 18
  • Operational controls
    270° potentiometer
  • Manufacturer Leuze

Product attachments

DSw_PRK96_b05e_en (LINK)
