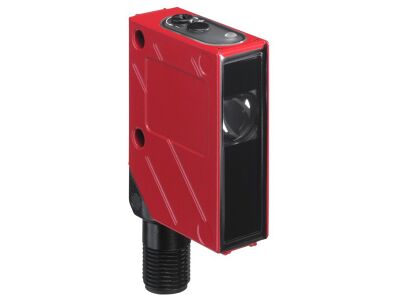

Polarized retro-reflective photoelectric sensor with a range of 0.1 to 6 meters, featuring dual digital switching outputs and a robust design.

**Meta description**
Compact polarized sensor with dual digital outputs, ideal for diverse applications.

SKU

2110-50137165
Manufacturer code

50137165
Pre failure notice

false
With time function

false
Rated switching distance

5000 mm
Max. switching distance

5000 mm
Max. output current

100 A
With reflector

false
Analogue output 0 V ... 10 V

false
Analogue output 0 mA ... 20 mA

false
Analogue output 4 mA ... 20 mA

false
Analogue output -10 V ... +10 V

false
With other analogue output

false
With communication interface analogue

false
With communication interface AS-Interface

false
With communication interface CANOpen

false
With communication interface DeviceNet

false
With communication interface Ethernet

false
With communication interface INTERBUS

false
With communication interface PROFIBUS

false
With communication interface RS-232

false
With communication interface RS-422

false
With communication interface RS-485

false
With communication interface SSD

false
With communication interface SSI

false
Number of semiconductor outputs with signalling function

2
Number of protected semiconductor outputs

0
Type of electric connection

Cable
Type of switching output

Other
Type of switch function

Anticoincidence
Operation agent-safety class

Safety class 3
Explosion safety category for gas

None
Explosion safety category for dust

None
Construction type housing

Cuboid
Width sensor

11.4 mm
Height of sensor

34.2 mm
Length of sensor

18.3 mm
Sensing mode

Light-/dark switching
Material of optical surface

Plastic
Housing material

Plastic
Plastic
Plastic
Plastic
Min. reflector distance

100 mm
Ambient temperature

-40 - 60 °C
Response time

0.33 s
Switching frequency

1500 Hz
Rated control supply voltage DC

10 - 30 V
Voltage type

DC
DC
DC
DC
With monitoring function downstream switching devices

false
Laser protection class

None
Wavelength of the sensor

633 nm
Type of light

Polarity free red light
With restart blockage

false
Suitable for safety functions

false
Degree of protection (IP)

Other
Setting procedure

Manual adjustment
Most suitable applications

Suitable for detecting objects in environments requiring high protection levels and operational flexibility.
Supplyoltage (V)

10 ... 30
Construction type housing

Cubic
Ambient temperature, operation (°C)

-40 ... 60
Operating range limit (m)

0.1 ... 6
Operational controls

270° potentiometer
