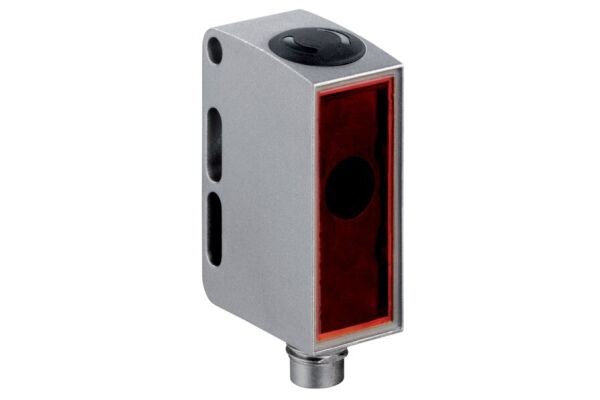

LSER 55/66,5000 Throughbeam photoelectric sensor receiver

LSER 55/66,5000
Compact throughbeam photoelectric sensor receiver with a durable stainless steel housing and versatile digital switching outputs.
  • SKU
    2110-50111970
  • Manufacturer code
    50111970
  • Scope of delivery of the one-way system
    Receiver
  • Pre failure notice
    false
  • With time function
    false
  • Max. output current
    100 A
  • With reflector
    false
  • Analogue output 0 V ... 10 V
    false
  • Analogue output 0 mA ... 20 mA
    false
  • Analogue output 4 mA ... 20 mA
    false
  • Analogue output -10 V ... +10 V
    false
  • With other analogue output
    false
  • With communication interface analogue
    false
  • With communication interface AS-Interface
    false
  • With communication interface CANOpen
    false
  • With communication interface DeviceNet
    false
  • With communication interface Ethernet
    false
  • With communication interface INTERBUS
    false
  • With communication interface PROFIBUS
    false
  • With communication interface RS-232
    false
  • With communication interface RS-422
    false
  • With communication interface RS-485
    false
  • With communication interface SSD
    false
  • With communication interface SSI
    false
  • Number of semiconductor outputs with signalling function
    2
  • Number of protected semiconductor outputs
    0
  • Number of protected contact energized outputs
    0
  • Type of electric connection
    Cable
  • Type of switching output
    Other
  • Type of switch function
    Anticoincidence
  • Operation agent-safety class
    Safety class 3
  • Explosion safety category for gas
    None
  • Explosion safety category for dust
    None
  • Construction type housing
    Cuboid
  • Width sensor
    14 mm
  • Height of sensor
    35.5 mm
  • Length of sensor
    25 mm
  • Sensing mode
    Light-/dark switching
  • Material of optical surface
    Plastic
  • Housing material
    Metal
    Stainless steel
  • Max. output current at protected output
    0 mA
  • Ambient temperature
    -30 - 55 °C
  • Response time
    0.5 s
  • Switching frequency
    1000 Hz
  • Switching voltage of OSSD at state "high"
    0 V
  • Supply voltage
    10 - 30 V
  • Voltage type
    DC
    DC
    DC
    DC
  • With monitoring function downstream switching devices
    false
  • Laser protection class
    None
  • With restart blockage
    false
  • Suitable for safety functions
    false
  • Degree of protection (IP)
    IP67
  • Rated switching distance
    8500 mm
  • Max. switching distance
    10000 mm
  • Min. reflector distance
    0 mm
  • Transmission range of the safety field
    0 m
  • Material of cable sheath
    Polyurethane (PUR)
  • Special version
    All stainless steel housing
  • Supplyoltage (V)
    10 ... 30
  • Construction type housing
    Cubic
  • Switching frequency (Hz)
    1000
  • Ambient temperature, operation (°C)
    -30 ... 55
  • Operating range limit (m)
    0 ... 10
  • Manufacturer Leuze

Product attachments

DS_LSR55_en_P.pdf (LINK)
