S18-2VNRS-2M Photoelectric Sensor, Opposed Mode Sensor (Receiver)

S18-2VNRS-2M

Photoelectric Sensor, Opposed Mode Sensor (Receiver), Operating voltage 10…30 VDC, Max. range 25000 mm, Cable length 2 m, Cable, 2 m, Protection class IP67, Ambient temperature: -40…+70 °C, Sensitivity adjusted via potentiometer, Visible red LED light, Operating voltage: 10…30 VDC, NPN switching output, changeover

  • SKU
    0662488865665
  • Manufacturer code
    3086566
  • Type of electric connection
    Cable
  • Type of switching output
    NPN
  • Type of switch function
    Change-over contact (NO/NC)

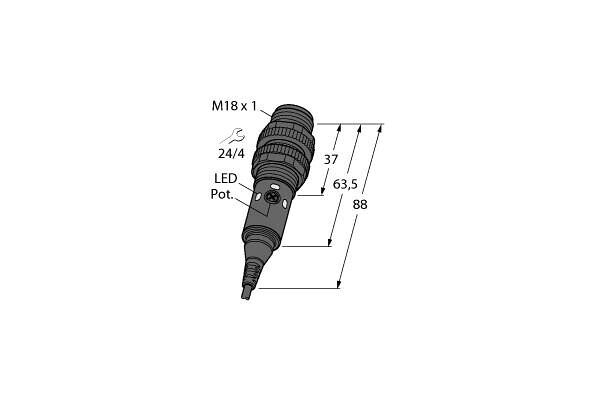

  • Length of sensor
    88 mm
  • Ambient temperature
    -40 - 70 °C
  • Response time
    1.5 s
  • Suitable for safety functions
    false
  • Degree of protection (IP)
    IP67
  • Rated switching distance
    25000 mm
  • Max. switching distance
    25000 mm
  • Wavelength of the sensor
    624 nm
  • Type of light
    Polarity free red light
  • Diameter sensor
    18 mm
  • Material of cable sheath
    Polyvinyl chloride (PVC)
  • Housing material
    Plastic
  • Type of switching output
    NPN
  • Cable length (m)
    2

  • This product is unavailable

    This product is currently unavaliable, this could be due to a limited stock shortage, or because of discontinuation or replacement. For more information please contact us at b2b@tipteh.si.

  • Manufacturer Turck

Product attachments

file-40775-abec36a8898c109d59f393491654e2b4.pdf (PDF, 995.79 kB)
