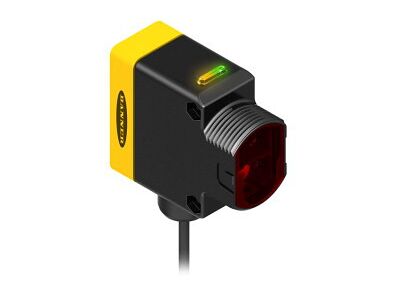

QS30EX Photoelectric Sensor, Opposed Mode Sensor (Emitter)

QS30EX

Photoelectric Sensor, Opposed Mode Sensor (Emitter), Operating voltage 10…30 VDC, Max. range 213000 mm, Cable length 2 m, Cable, PVC, 2 m, Protection class IP67, LED all-round visible, Selectable operating frequency, protection against crosstalk, Emitter LED, switchable, Operating voltage: 10…30 VDC

  • SKU
    0662488715595
  • Manufacturer code
    3071559
  • Setting procedure
    Other
  • Type of electric connection
    Cable
  • Construction type housing
    Cuboid
  • Width sensor
    22 mm
  • Height of sensor
    49 mm
  • Length of sensor
    35 mm
  • Material of optical surface
    Plastic
  • Ambient temperature
    -20 - 60 °C
  • Response time
    30 s
  • Suitable for safety functions
    false
  • Degree of protection (IP)
    IP67
  • Rated switching distance
    213000 mm
  • Max. switching distance
    213000 mm
  • Wavelength of the sensor
    875 nm
  • Type of light
    Infrared light
  • Diameter sensor
    30 mm
  • Material of cable sheath
    Polyvinyl chloride (PVC)
  • Housing material
    Plastic
  • Cable length (m)
    2

  • This product is unavailable

    This product is currently unavaliable, this could be due to a limited stock shortage, or because of discontinuation or replacement. For more information please contact us at b2b@tipteh.si.

  • Manufacturer Turck

Product attachments

file-53151-f0d8a596913fda4514bc7b071754b039.pdf (PDF, 663.63 kB)
