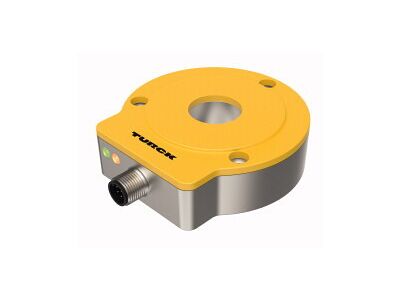

RI360P0-EQR24M0-INCRX2-H1181 Contactless Encoder with Stainless Steel Housing, Incremental: 1 … 5000 ppr, Pre

RI360P0-EQR24M0-INCRX2-H1181

Contactless Encoder with Stainless Steel Housing, Incremental: 1 … 5000 ppr, Premium Line, Operating voltage 10…30 VDC, Resolution incremental 1024 ppr, Compact, rugged housing, Active face, plastic PA12-GF30, Housing, stainless steel V4A (1.4404), Status displayed via LED, Immune to electromagnetic interference, 1024 pulses per revolution (default), 360, 512, 1000, 1024, 2048, 2500, 3600, 4096, parametr. via Easy-Teach, Free parametrization of the pulse number in the range from 1 to 5000 via PACTware™, Position of z-track set via Easy-Teach, Burst function, absolute angular position output incrementally per Easy-Teach pulse, 10…30 VDC, Male M12 x 1, 8-pin, Push-pull A, B, Z, A (inverse), B (inverse)

  • SKU
    4047101313932
  • Manufacturer code
    1590912
  • Physical measurement principle
    Inductive
  • Type of shaft encoder
    Hollow shaft
  • Type of electric connection
    Plug-in connection
  • Diameter axle
    6 - 6.35 mm
  • Programmable
    true
  • Housing material
    Other
  • Degree of protection (IP)
    IP68
  • Model
    Incremental encoder
  • Max. pulses per revolution
    200
  • Standard for interfaces
    Other
  • Impulse rate per cycle
    1024
  • Connector gender
    male
  • Manufacturer Turck

Product attachments

file-43321-c0a9b492221c357158dc3b92b75ac756.pdf (PDF, 1.95 MB)
