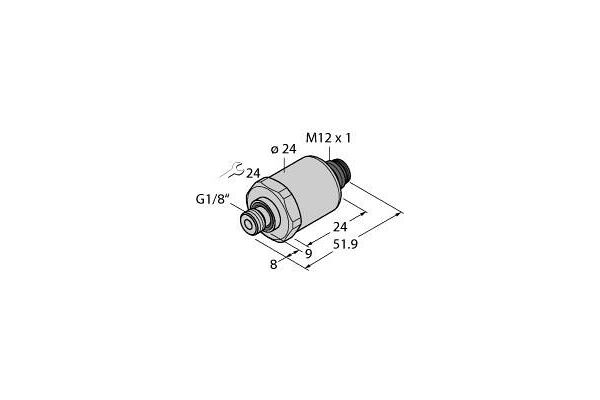

PT1V-1013-IOL-H1141 Pressure Transmitter, With 2 Switching Outputs and IO-Link

PT1V-1013-IOL-H1141

Pressure Transmitter, With 2 Switching Outputs and IO-Link, Operating voltage 18…33 VDC, Ceramic measuring cell, Compact and robust design, Excellent EMC properties, Pressure range -1…1 bar rel., 18…33 V DC, NO/NC contact, 2 × PNP/NPN outputs, IO-Link, Process connection G1/8″ male thread (back sealing) according to DIN EN ISO 1179-2 with FPM profile sealing ring, Connector device, M12 × 1

  • SKU
    4047101529050
  • Manufacturer code
    100021803
  • Engaging pressure
    -1 - -1 bar
  • Initial setting
    -1000 - -1000 hPa
  • Switch off pressure
    1 - 1 bar
  • End setting
    1000 - 1000 hPa
  • Max. test pressure
    3 bar
  • Bursting pressure
    3 bar
  • Medium temperature
    -40 - 125 °C
  • Rated voltage Ue at DC
    18 - 33 V
  • Initial value measuring range pressure
    -100000 Pa
  • End value measuring range pressure
    100000 Pa
  • Type of electric connection
    Other
  • Degree of protection (IP)
    IP67
  • Switching output
    PNP/NPN
  • Network protocol
    IO-link
  • Connector gender
    male
  • Type of switch
    NO/NC contacts
  • Manufacturer Turck

Product attachments

file-31173-5ae958bb194c1efa2b08fe0e41400805.pdf (PDF, 224.59 kB)
