PT0.25R-1004-IOL-H1141 Pressure Transmitter, With 2 Switching Outputs and IO-Link

PT0.25R-1004-IOL-H1141

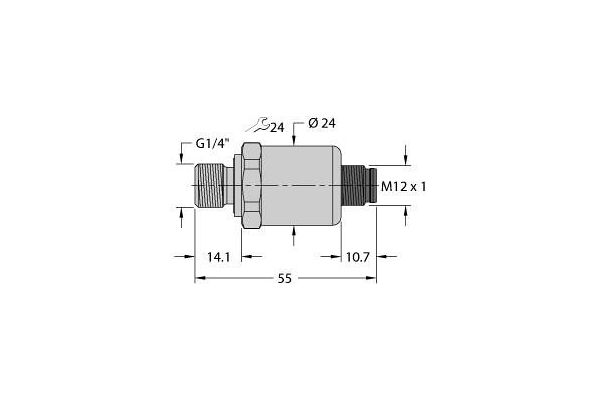

Pressure Transmitter, With 2 Switching Outputs and IO-Link, Operating voltage 18…33 VDC, Ceramic measuring cell, Compact and robust design, Excellent EMC properties, Pressure range 0…0.25 bar rel., 18…33 V DC, NO/NC contact, 2 × PNP/NPN outputs, IO-Link, Process connection G1/4″ male thread (back sealing) according to DIN EN ISO 1179-2 with FPM profile sealing ring, Connector device, M12 × 1

  • SKU
    4047101532975
  • Manufacturer code
    100024334
  • Engaging pressure
    0 - 0 bar
  • Initial setting
    0 - 0 hPa
  • Switch off pressure
    0.25 - 0.25 bar
  • End setting
    250 - 250 hPa
  • Max. test pressure
    3 bar
  • Bursting pressure
    3 bar
  • Medium temperature
    -40 - 125 °C
  • Rated voltage Ue at DC
    18 - 33 V
  • Initial value measuring range pressure
    0 Pa
  • End value measuring range pressure
    25000 Pa
  • Type of electric connection
    Other
  • Degree of protection (IP)
    IP67
  • Switching output
    PNP/NPN
  • Network protocol
    IO-link
  • Connector gender
    male
  • Type of switch
    NO/NC contacts
  • Manufacturer Turck

Product attachments

file-38249-16d4b4a687f013cdef1a64725d0f8968.pdf (PDF, 220.32 kB)
